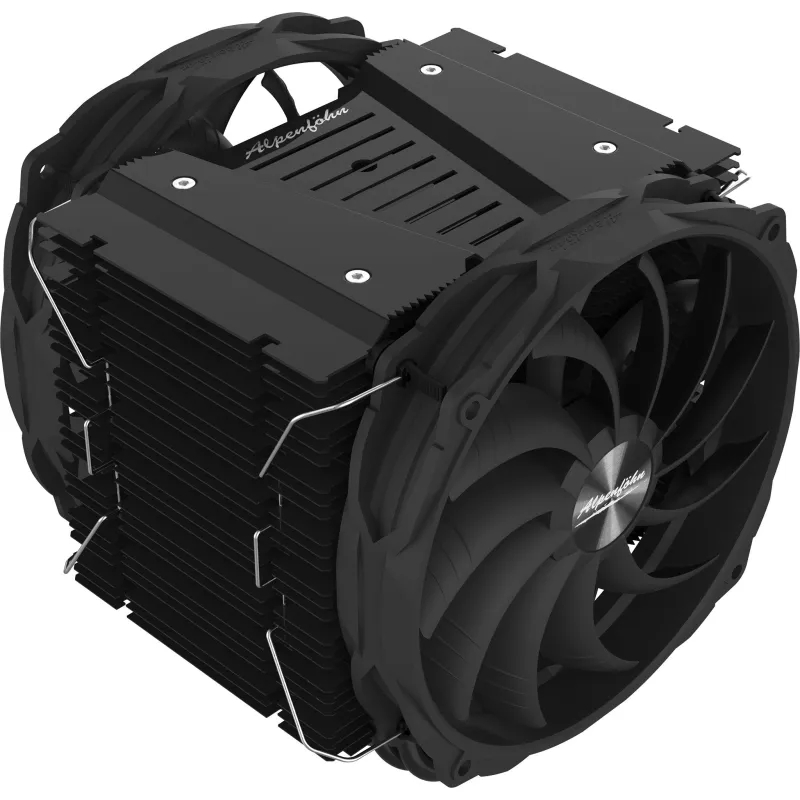

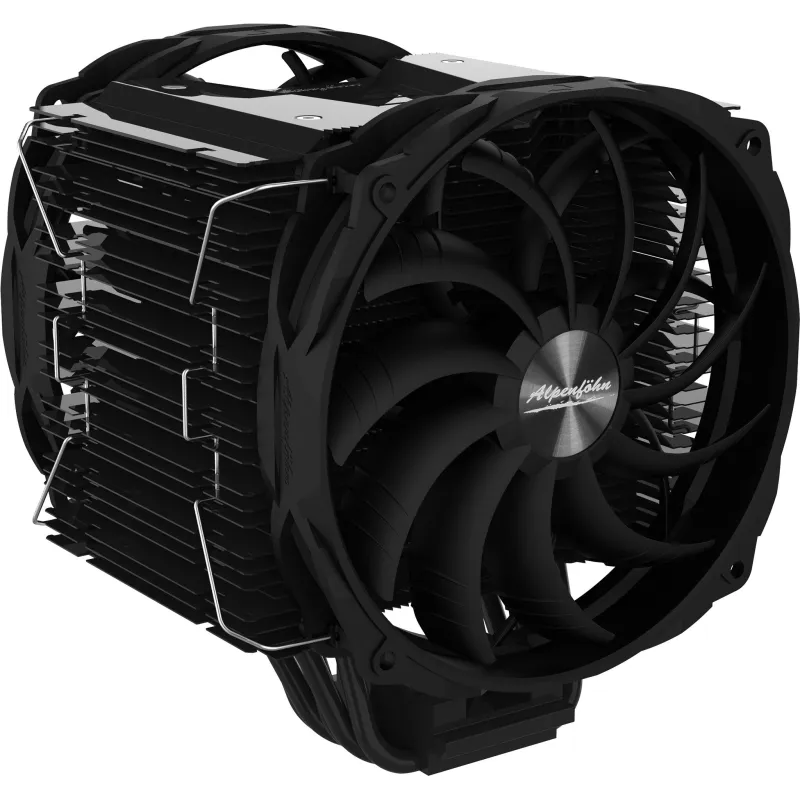

Alpenföhn Brocken 3 Black Edition Processor Cooler 14 cm
- Processor Cooler 14 cm 1050 RPM
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1
- 22 dB Fluid Dynamic Bearing (FDB)
- 140 x 140 x 25 mm
- Black
Large surface and black coated heatsink having the fin spacing designed for silent operation in combination with aerodynamically optimized fins – Brocken 3 comprises the best out of two generations of “Brocken” shooting them to a new level of performance!
The also included 140 mm PWM fans of the new wing boost 3 series takes care of the required airflow. Because of the rigidly integrated guide wheel for axial flow direction we have achieved not only an improved cooler noise but also a minimized twist of the airflow at the heatsink. This results in the enormous performance of the cooler where the maximum speed has been reduced significantly compared to alternative layouts.
The mounting system “RockMount2 “ offers an even more improved user friendliness when installing the cooler.
HighEnd Heatpipes with gapless H.D.C-technology
Thanks to the gapless H.D.C –technology the five high performance heatpipes have direct contact to the cpu.
Asymetrical heatsink for enhanced flexibility
Due to the asmetrical heatsink all memory slots can be populated – even if high heatspreaders are used on the modules.

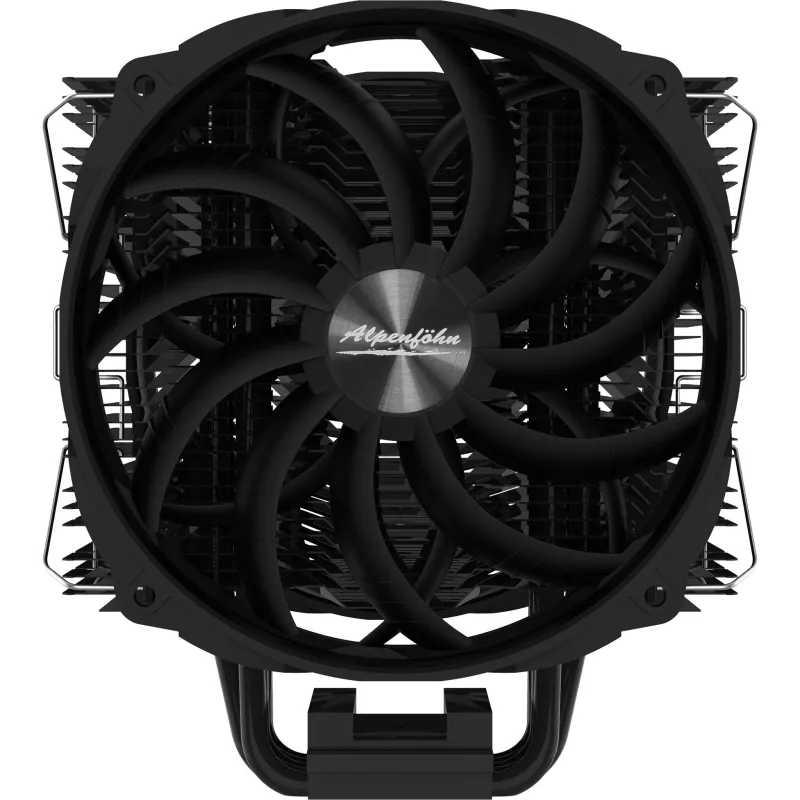

140mm WingBoost 3 Premium Fan
Rotor
By means of a new blade angle the rotor has been optimized to lower speed in order to achieve in comparison with other fans a significantly higher volume flow, total pressure and exit speed at the same speed. And what is more, the aerodynamically optimized blade geometry favors the axial flow direction. Compared to conventional fans this “dispersion” of the airflow offers an increased surface to efficiently dissipate the heat of the heatsink. Additionally, the new blade geometry prevents the backflow of the proper flow direction – especially with higher counter pressure!
Guide Wheel
The rigidly integrated guide wheel in the fan frame allows to significantly increase the static pressure as well as to reduce the twist of the exit flow. The result is a further optimization of the radial flow component and the resulting noise reduction because the flow is not broken abruptly when the airflow hits the aluminum fin.
Plus Function
WingBoost3 includes a “Plus Function”. It means that a Y-switch has been fastened at the PWM-plug for a second PWM fan. The switch allows controlling another PWM fan via a PWM board signal so it does not have to be connected via a cable adaptor or a 3-pin connection. Please note: When using a WingBoost3 fan up to three other fans can be connected to just on PWM board signal.
RockMount2 Mounting System – Warranty for Quality and Safety even better now
RockMount2 has become even more user-friendly when you install the cooler. RockMount2 supports all common bases from Intel and AMD. 2011, 2011-v3, 2066, 1366, 115x (Coffee Lake compatible), 775, AM4, AM3(+), AM3, AM2(+), AM2 as well as FM1. RockMount2 , as it usually does with contact pressure, counts on the base specific requirements of the respective manufacturer, while considering weight and size of the cooler.
| Performance | |
|---|---|
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Airflow | 103 m³/h |
| Noise level (high speed) | 22 dB |
| Rotational speed (max) | 1050 RPM |
| Rotational speed (min) | 400 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1 |
| Fan diameter | 14 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Fins material | Aluminium |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 220 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Weight | 1.02 kg |
| Height | 165 mm |
| Depth | 150 mm |
| Width | 146 mm |
