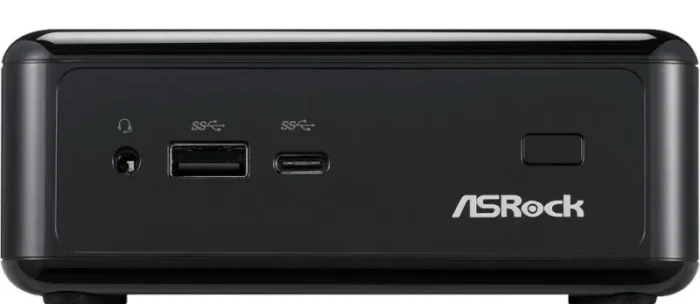

Asrock Beebox 6200U/B/BB 0.6L sized PC Black i5-6200U LGA 1356 (Socket B2) 2.3 GHz
- 0.6L sized PC Black
- Built-in processor Intel i5-6200U 2.3 GHz
- 2 SO-DIMM Maximum internal memory: 16 GB DDR3L-SDRAM
- HDD & SSD 2.5″
- On-board graphics card Intel® HD Graphics 520
- Ethernet LAN Wi-Fi
A home theater system for your living room that’s also quiet enough for your bedroom, and powerful enough for a daily computing PC.
A miniature PC for office tasks, stock monitoring, educational purposes or even digital signage. Makes your business bloom in no time.
Improved performance, lower power consumption, and new multimedia capabilities.
4K Support
The only system in the segment that supports dual channel memory for supporting 4K video playback.
Supports Up to 48CH H.265 IP Cameras
Beebox is able to work as an industrial grade 48 channel NVR (Networking Video Recorder) system. It is also capable of HEVC (H.265) recording for up to 48 IP cameras in D1 (704×576) resolution.
Swift Data Transfer and Device Charging – Type-C USB
USB Type-C doubles the charge speed!
The World’s First NUC with a USB 3.1 Type-C Port
Faster device charging with power currents of 3.0 ampere.
The Fastest Wireless Internet – 802.11ac WiFi
Beebox comes with an exclusive 802.11ac WiFi (2.4G/5G WiFi) module.
Quiet Design
A special design that produces absolutely low noise.
Remote Controller
A free bundled remote controller for Beebox.
Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Processor codename | Skylake |
| Processor series | Intel Core i5-6200 series |
| Thermal Design Power (TDP) | 15 W |
| L3 cache | 3 MB |
| Processor lithography | 14 nm |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 2.8 GHz |
| Processor threads | 4 |
| Processor cores | 2 |
| Processor model | i5-6200U |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 16 GB |
| Supported memory types | DDR3L-SDRAM |
| Supported memory clock speeds | 2133 MHz |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Storage drive interface | M.2, Serial ATA III |
| Storage drive sizes supported | 2.5″ |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® HD Graphics 520 |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | |
|---|---|
| PCI Express configurations | 1×4, 4×1 |
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cooling type | Passive |
| Product colour | Black |
| Chassis type | 0.6L sized PC |
| Performance | |
|---|---|
| Audio system | Realtek ALC283 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor special features | |
|---|---|
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Smart Cache | Yes |
| General | |
|---|---|
| Product family | Beebox |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Power | |
|---|---|
| AC adapter output voltage | 12 V |
| Power supply | 36 W |
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Height | 46 mm |
| Depth | 118.5 mm |
| Width | 110 mm |
