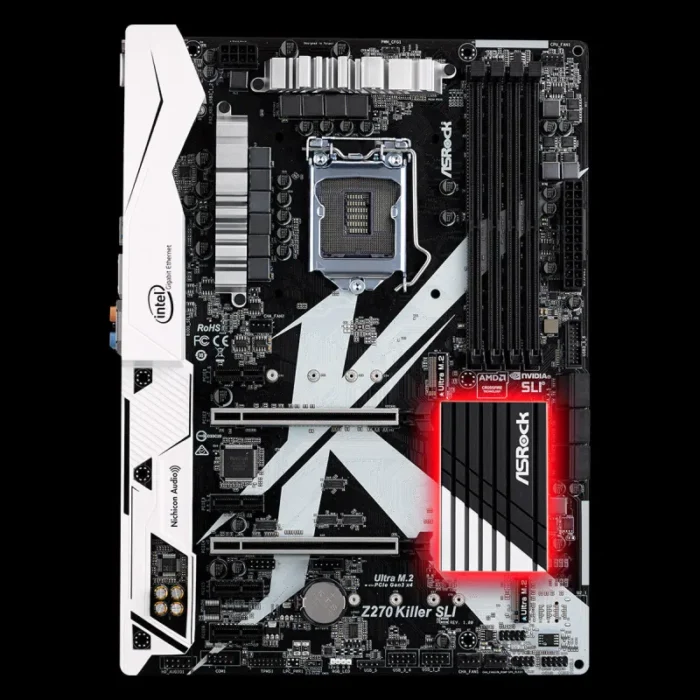

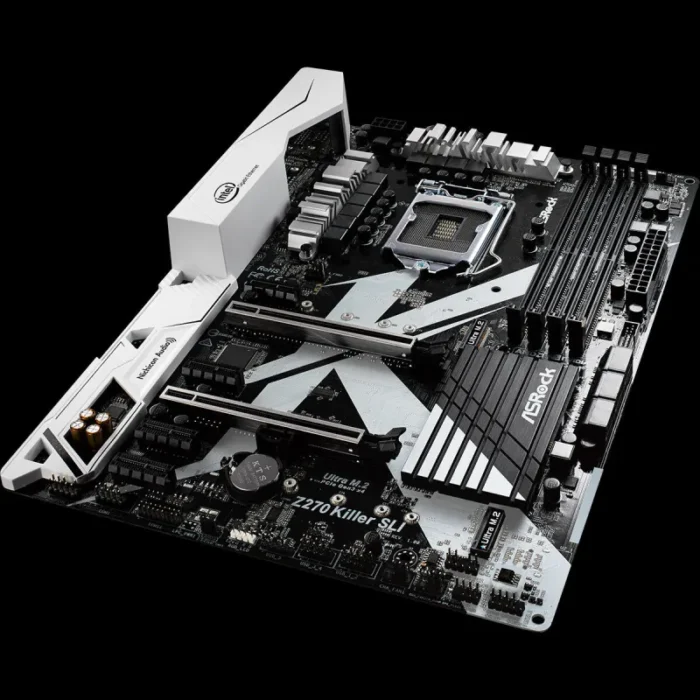

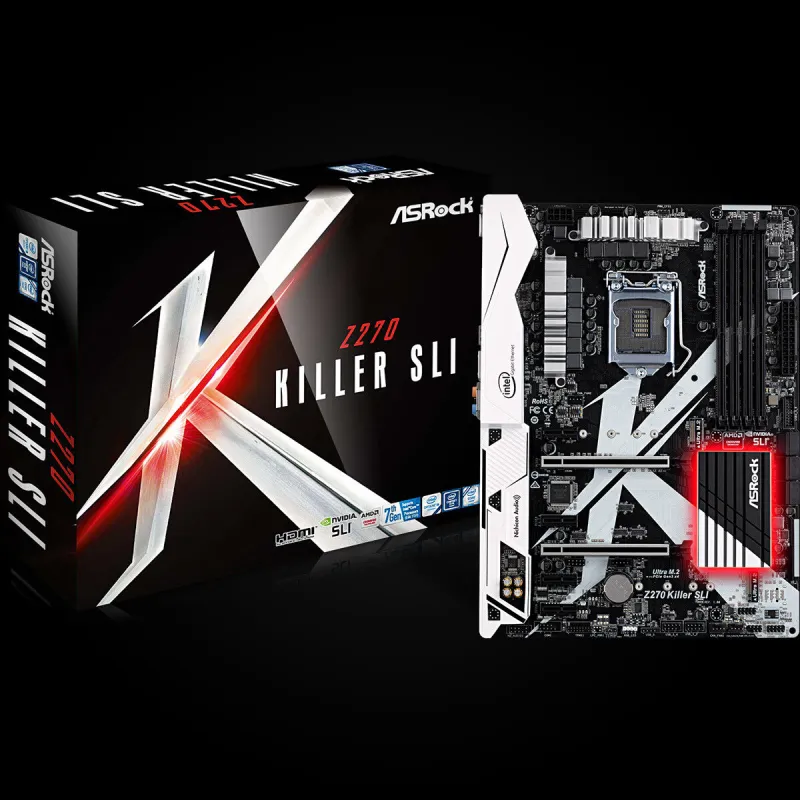

Asrock Z270 Killer SLI Intel® Z270 LGA 1151 (Socket H4) ATX

• Intel LGA 1151 (Socket H4) Intel® Celeron®, Intel® Pentium®
• PC ATX Intel® Z270 7.1 channels
• DDR4-SDRAM 4 DIMM Maximum internal memory: 64 GB
• 4-Way CrossFireX, 4-Way SLI 1024
• BIOS type: UEFI AMI 128 Mbit ACPI version: 6.0
• Gigabit Ethernet

– ASRock Super Alloy
– Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
– Supports DDR4 3733+(OC)
– 2 PCIe 3.0 x16, 4 PCIe 3.0 x1
– NVIDIA® Quad SLI™, AMD Quad CrossFireX™
– Graphics Output Options: HDMI, DVI-D
– 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
– 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
– 8 USB 3.0 (5 Rear, 1 Type-C, 2 Front)
– Intel® Gigabit LAN
– ASRock AURA RGB LED

Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

AURA RGB LED
Build your own colorful lighting system! AURA RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock AURA RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!

Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.

2 PCI-E STEEL SLOT :
Tailor-made for multiple VGA cards
Adopts PCI-E Steel Slot, which is built with more solder points on the PCB for better performance and preventing any signal interference with graphics cards. Allows your graphics cards with enhanced signals and to be well-installed in the PCI-Express slot.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.

USB Type-C
A latest reversible USB Type-C design that fits the connector either way.

Premium 40A Power Choke
Compared to traditional chokes, ASRock’s premium 40A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Nichicon 12K Black Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard’s rear I/O, so that they won’t easily be damaged by static electricity.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

User friendly UEFI & EZ Mode
ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

A-Tuning
A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
