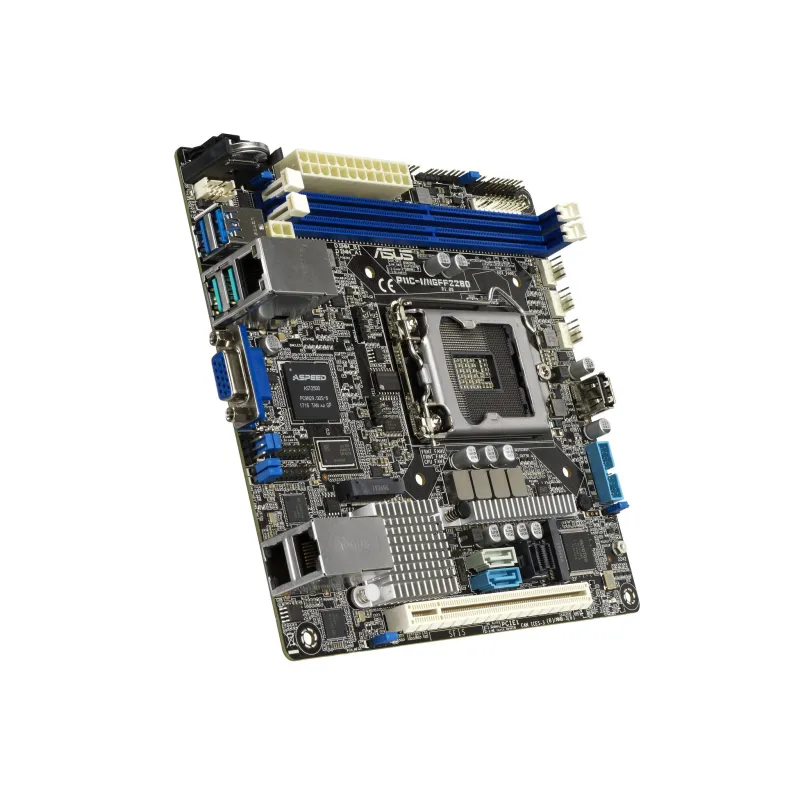

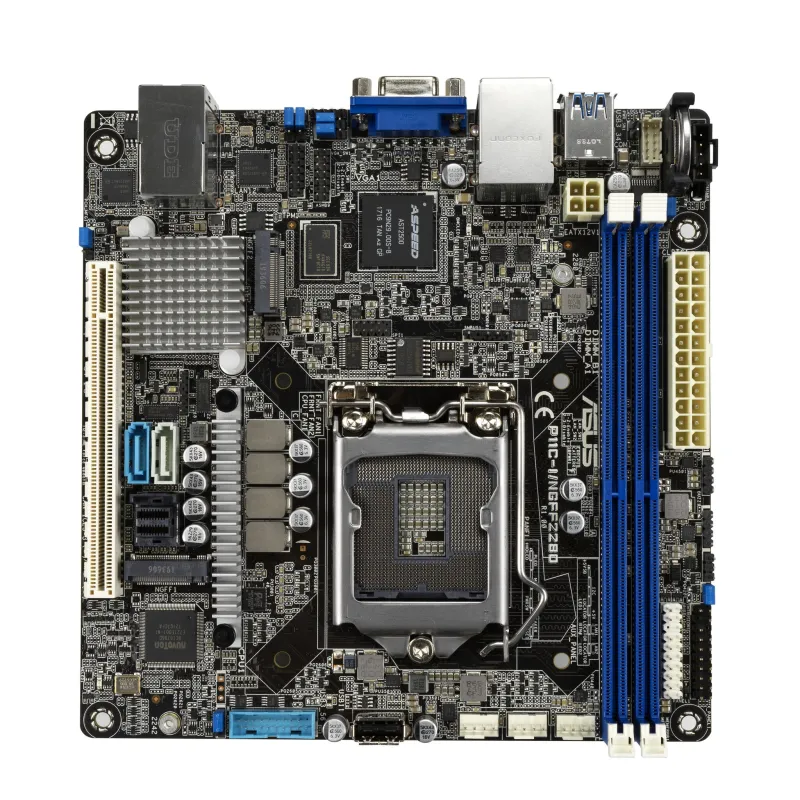

ASUS P11C-I/NGFF2280 Intel C242 LGA 1151 (Socket H4) mini ITX

£203.99 Original price was: £203.99.£67.80Current price is: £67.80.

Compare
Add to wishlist
SKU: US-14994048516478 Category: Motherboards
Share:
  • Description
  • Shipping & Delivery
Description

ASUS P11C-I/NGFF2280 Intel C242 LGA 1151 (Socket H4) mini ITX

  • Powered by the Intel® Xeon® E platform
  • 95W CPU and up to 64GB memory support (2 DIMMs)
  • Dual M.2 design in Mini-ITX motherboard to deliver faster data transfer speed
  • Flexible expandability with 6 SATA HDDs and 1 PCIe Gen3 slot
  • Dual Intel® Gigabit Ethernet with teaming support
  • Accelerated data-transfer speeds of up to 32Gbps with M.2
  • High-speed mini-SAS HD connections
  • TPM 2.0 Ready secures store keys, digital certificates, passwords and data
  • Complete server management with ASUS Control Center
  • Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics

Intel® Xeon® E mini-ITX server motherboard with rack-optimized design and dual networking

Mini-ITX compact server board with multiple expandability options
P11C-I/NGFF2280 is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering dual server-class Intel® Ethernet and flexible expandability with M.2, six SATA 6G. The 6.7” x 6.7” Mini-ITX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

Accelerated data-transfer speeds of up to 16Gbps with M.2
Mini-ITX motherboards are typically limited to a single onboard M.2 connector due to the limited space of the small form factor. With an optimized design, ASUS P11C-I/NGFF2280/NGFF2280 features dual onboard M.2 connectors and support for 2280-length M.2 drives via PCIe or SATA, enabling faster data transfer speeds with RAID 0 configurations or instant data redundancy with RAID 1 for space-saving systems with no-compromise storage performance.

High-speed mini-SAS HD connections
P11C-I/NGFF2280 comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-I/NGFF2280 also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-I/NGFF2280, making it a great upgrade option.

Dual Intel® I210AT Gigabit Ethernet
P11C-I/NGFF2280 features dual server-class Intel® Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

TPM-M 2.0 ready
P11C-I/NGFF2280 supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

Comprehensive IT infrastructure management
P11C-I/NGFF2280 features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Enhanced serviceability
With its power button located on the front I/O panel, P11C-I/NGFF2280 is designed to provide easier maintenance and deployment for diverse applications.

Quick initialization guidance
P11C-I/NGFF2280 provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

ASUS ProCool connector
ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.

Processor
Intel Xeon series E-2200, E-2100
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®, Intel Xeon E
Processor socket LGA 1151 (Socket H4)
Processor manufacturer Intel
Memory
Supported memory module capacities 4GB, 8GB, 16GB, 32GB
Maximum internal memory 64 GB
Supported memory clock speeds 2400,2666 MHz
ECC сompatibility ECC & Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 2
Supported memory types DDR4-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Number of storage drives supported 8
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
On-board graphics card memory 32 MB
Graphics card AST2500
Graphics card family ASPEED
On-board graphics card Yes
Internal I/O
Serial port headers 1
TPM connector Yes
Number of SATA III connectors 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 1

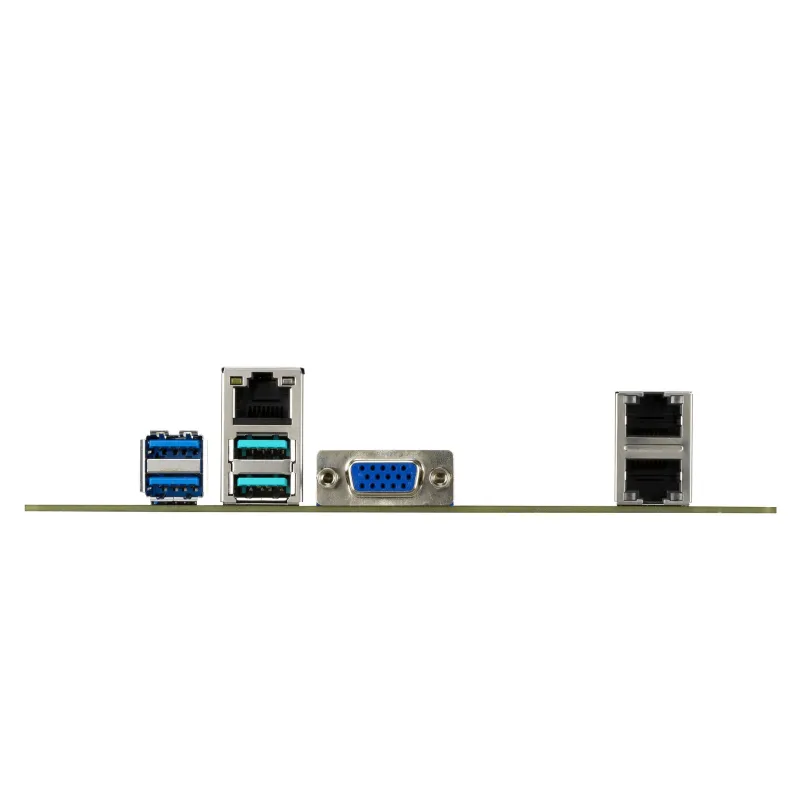

Rear panel I/O ports
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Network
Wi-Fi No
LAN controller Intel® I210-AT
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Motherboard chipset Intel C242
Motherboard chipset family Intel
Motherboard form factor mini ITX
Component for PC
Expansion slots
Number of M.2 (M) slots 2
PCI Express x16 (Gen 3.x) slots 1
Operational conditions
Storage relative humidity (H-H) 20 – 90%
Operating temperature (T-T) 10 – 35 °C
Storage temperature (T-T) -40 – 70 °C
Packaging data
Package weight 1.1 kg
Logistics data
Harmonized System (HS) code 84733020
