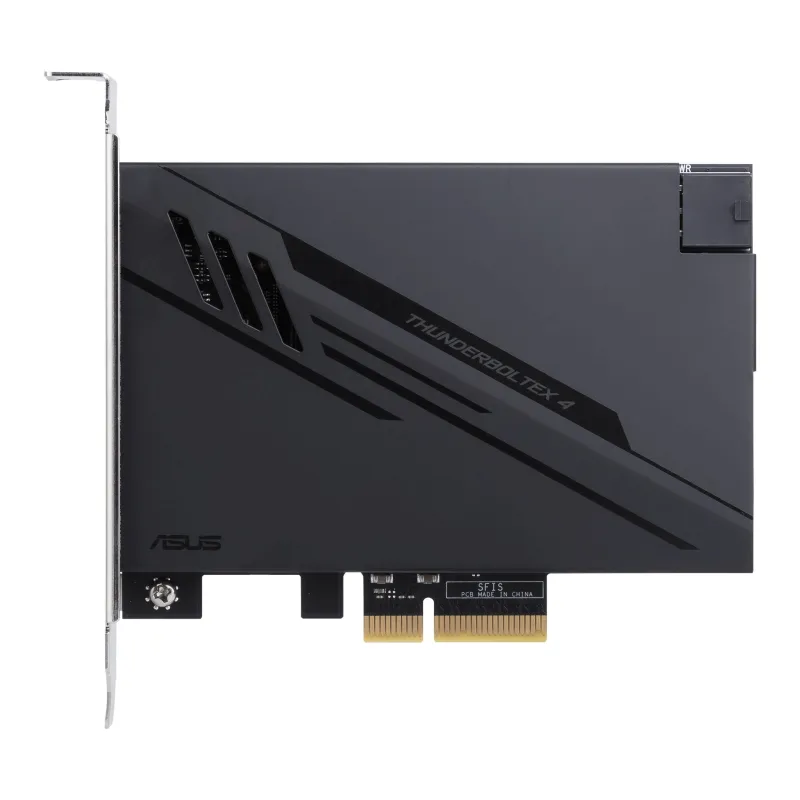

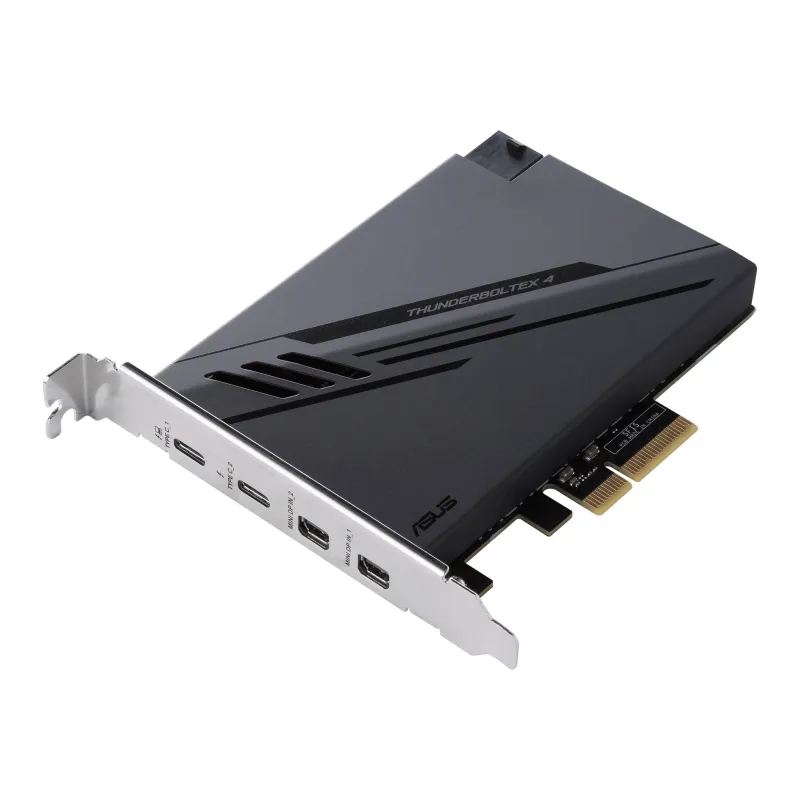

ASUS ThunderboltEX 4 interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
- Intel®-certified Thunderbolt™ 4 add-on card
- 40 Gbps bi-directional bandwidth for superfast data transfers and video output
- Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five Thunderbolt devices in a daisy chain
- DisplayPort™ 1.4 for 8K Ultra HD support
Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.
| Ports & interfaces |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Expansion card standard |
PCIe 3.0 |
| Output interface |
Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2) |
| Host interface |
PCIe |
| Design |
| Purpose |
PC |
| Product colour |
Black |
| Internal |
Yes |
| Features |
| Plug and Play |
Yes |
| Data transfer rate (max) |
40 Gbit/s |
| Chipset |
Intel Thunderbolt 4 JHL8540 |
| System requirements |
| Windows operating systems supported |
Windows 10 x64 |
| Weight & dimensions |
| Depth |
180.5 mm |
| Width |
117.7 mm |
| Packaging data |
| Package type |
Box |
| Manual |
Yes |
| Drivers included |
Yes |
| Cables included |

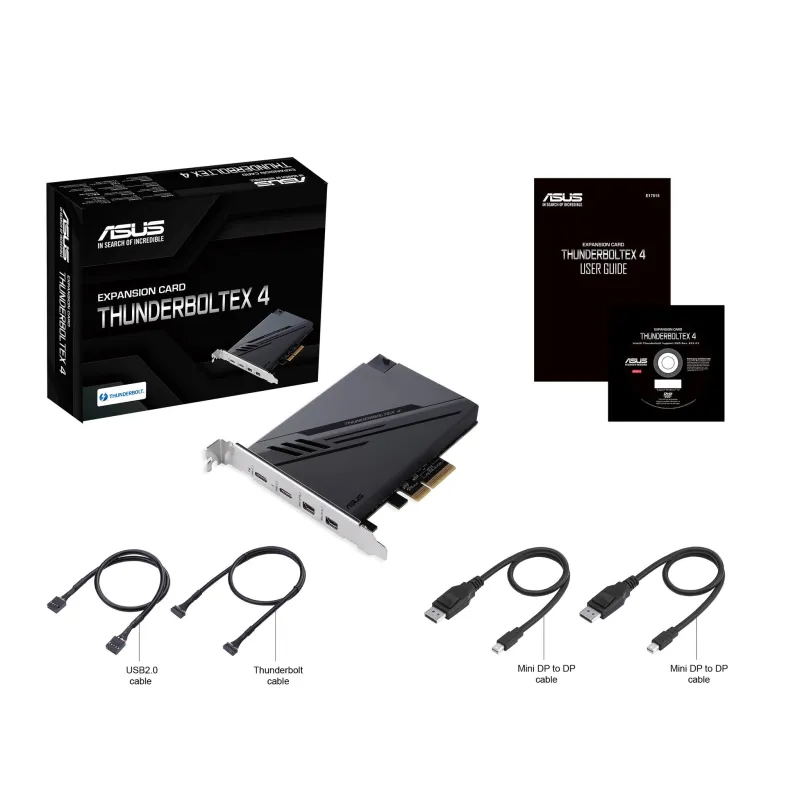

Mini DisplayPort, Thunderbolt, USB |
| Quantity |
1 |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Other features |
| Compatibility |
ASUS Intel 500 |
| Maximum resolution |
7680 x 4320 pixels |
