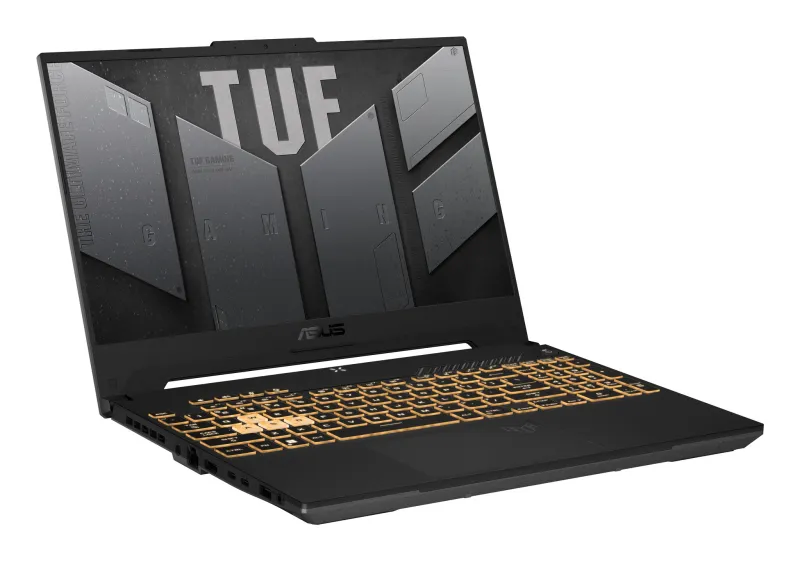

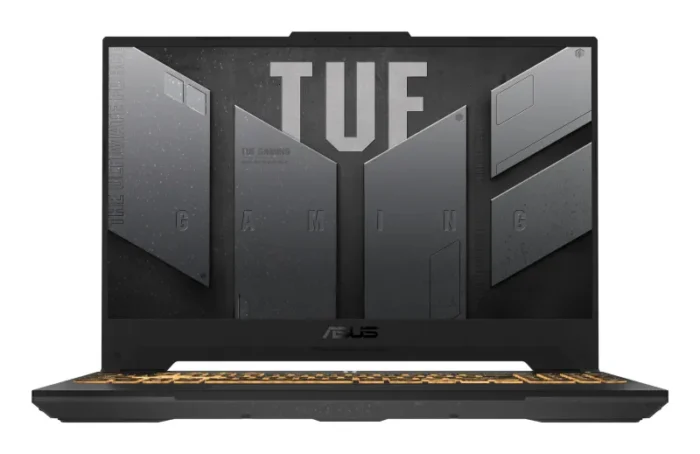

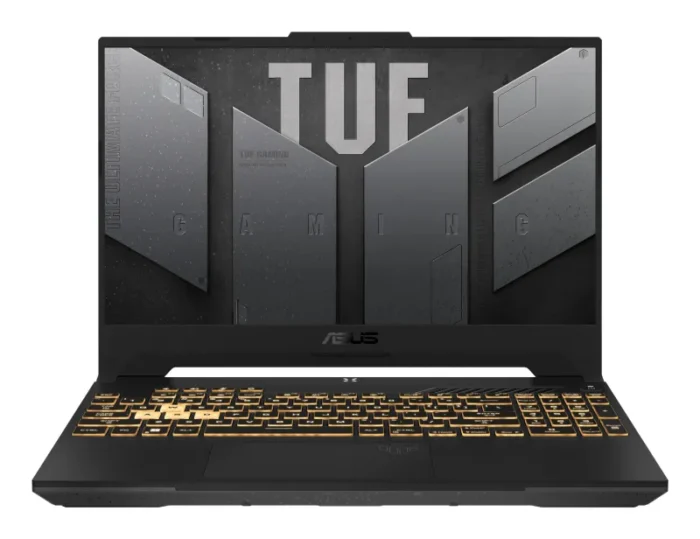

ASUS TUF Gaming A15 FA507RM-HN082W AMD Ryzen™ 7 6800H Laptop 39.6 cm (15.6″) Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6 (802.11ax) Windows 11 Home Grey
- Windows 11 Home 64-bit
- AMD Ryzen 7 6800H (16MB Cache, 3.2GHz)
- 39.6 cm (15.6″) Full HD 1920 x 1080, NVIDIA GeForce RTX 3060 (6GB GDDR6)
- 16GB (4800MHz) DDR5-SDRAM (2 x 8) & 512GB SSD
Mechanized endurance. Battlefield brilliance.
HIGH-POWER
AMD Ryzen™ 7 processor, GeForce RTX™ 30 Series Laptop GPU with up to 140W max TGP, and MUX Switch
MAXIMUM COOLING
84-blade Arc Flow Fans™ with up to 4 exhaust vents and 5 heatpipes
STEALTH CAPABILITY
4.5% smaller chassis, with a robust keyboard and 26% larger touchpad
STELLAR VISUALS
Up to QHD 165Hz or FHD 300Hz with Adaptive-Sync, 80% screen to body ratio
PRODUCTIVITY ON THE GO
USB 3.2 Type-C support, DDR5-4800MHz RAM, and a 90Wh battery
RUGGED AND REFINED
Meets MIL-STD-810H standards for resistance to shock, vibration, and other environmental extremes
BRAND NEW DESIGN
The TUF Gaming chassis has been redesigned for 2022, and is 4.5% smaller than last year’s models. The TUF logo has been reimagined as well, with both embossed and laser-sculpted versions. Despite this size reduction, the brand new 2022 TUF Gaming A15 still houses a large touchpad with anime-inspired accents and four-way indicators.
| Design | |
|---|---|
| Country of origin | China |
| Market positioning | Gaming |
| Form factor | Clamshell |
| Colour name | Mecha Gray |
| Product colour | Grey |
| Product type | Laptop |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 144 Hz |
| RGB colour space | sRGB |
| Colour gamut | 62.5% |
| Display brightness | 250 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6″) |
| Processor | |
|---|---|
| Processor cache | 16 MB |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 8 |
| Processor model | 6800H |
| Processor generation | AMD Ryzen 6000 Series |
| Processor family | AMD Ryzen™ 7 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| NVIDIA G-SYNC | Yes |
| On-board graphics card model | AMD Radeon 680M |
| On-board GPU manufacturer | AMD |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Camera | |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2×2 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Performance | |
|---|---|
| Repairability index | 7.3 |
| Keyboard | |
|---|---|
| Keyboard backlit zone | 1-zone RGB |
| Keyboard backlit colour | RGB |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | McAfee LiveSafe™ 30-day trial |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| AC adapter output voltage | 20 V |
| AC adapter output current | 12 A |
| AC adapter input voltage | 100 – 240 V |
| AC adapter frequency | 50 – 60 Hz |
| AC adapter power | 240 W |
| Security | |
|---|---|
| Password protection type | BIOS, User |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.49 cm |
| Height (front) | 2.24 cm |
| Depth | 251 mm |
| Width | 354 mm |
| Weight | 2.2 kg |
| Packaging data | |
|---|---|
| Package weight | 4.2 kg |
| Package height | 312 mm |
| Package depth | 426 mm |
| Package width | 103 mm |
| General | |
|---|---|
| Product family | TUF Gaming |
| Product series | A15 |
| Logistics data | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
