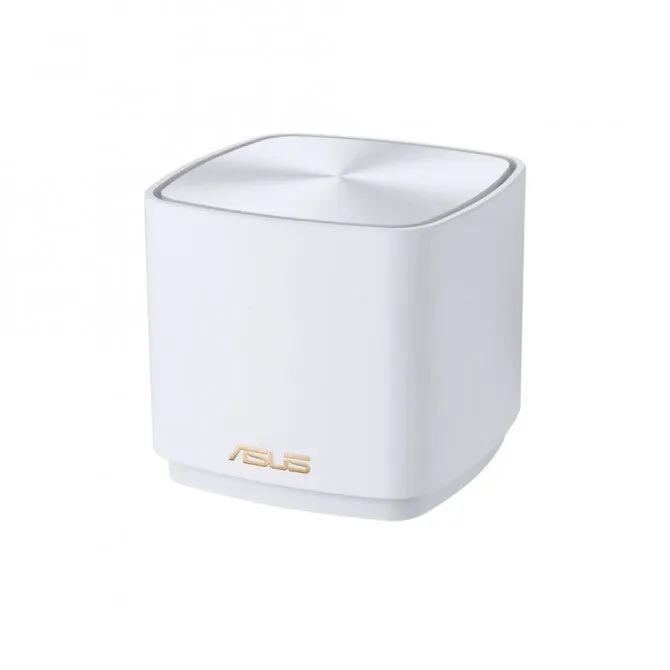

ASUS ZenWiFi AX Mini (XD4) White 1PK Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) 2 Internal
- Mesh router White
- Antenna type: Internal Antennas quantity: 2
- Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) 1201 Mbit/s
- SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS
- Point-to-point protocol over Ethernet (PPPoE)
- Quality of Service (QoS) support Port forwarding
- DHCP server
- Ethernet WAN
ASUS ZenWiFi
WiFi Coverage Everywhere. Always Secure.
Whole-home Coverage
The ZenWiFi AX Mini system consists of one ASUS AX1800 WiFi 6 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
WiFi 6
True 8K Streaming
ZenWiFi AX Mini puts your WiFi into top gear! With a total bandwidth of up to of 1800 Mbps, it’s up to 1.4X faster* than WiFi 5 routers
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Easier-than-ever Setup
What makes ZenWiFi AX Mini setup so easy?
– One-time setup, with auto synchronization for all the hubs in each package
– At a glance: You must start setup using the router, which is the unit with a removable clear plastic strip wrapped around it.
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi AX Mini works perfectly with smart-home services — including Alexa skills and IFTTT — and is available in charcoal or white to suit your décor.
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
| Design | |
|---|---|
| Reset button | Yes |
| Antennas quantity | 2 |
| Antenna type | Internal |
| LED indicators | Power |
| Product type | Mesh router |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| VPN support | VPN Client L2TPVPN Client OVPNVPN Client PPTPVPN Server IPSecVPN Server OVPNVPN Server PPTP |
| Dynamic DNS (DDNS) | Yes |
| IGMP snooping | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Security algorithms | SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (max) | 1201 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| MIMO | Yes |
| Works with IFTTT | Yes |
| Parental control | Yes |
| Works with Amazon Alexa | Yes |
| DHCP server | Yes |
| Firewall security | Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 |
| Port forwarding | Yes |
| Quality of Service (QoS) support | Yes |
| Flash memory | 256 MB |
| Internal memory | 256 MB |
| Protocols | |
|---|---|
| Supported network protocols (IPv6) | yes |
| Ports & interfaces | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| AC adapter output current | 1.5 A |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 110 – 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 295 g |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
- manual pdf
