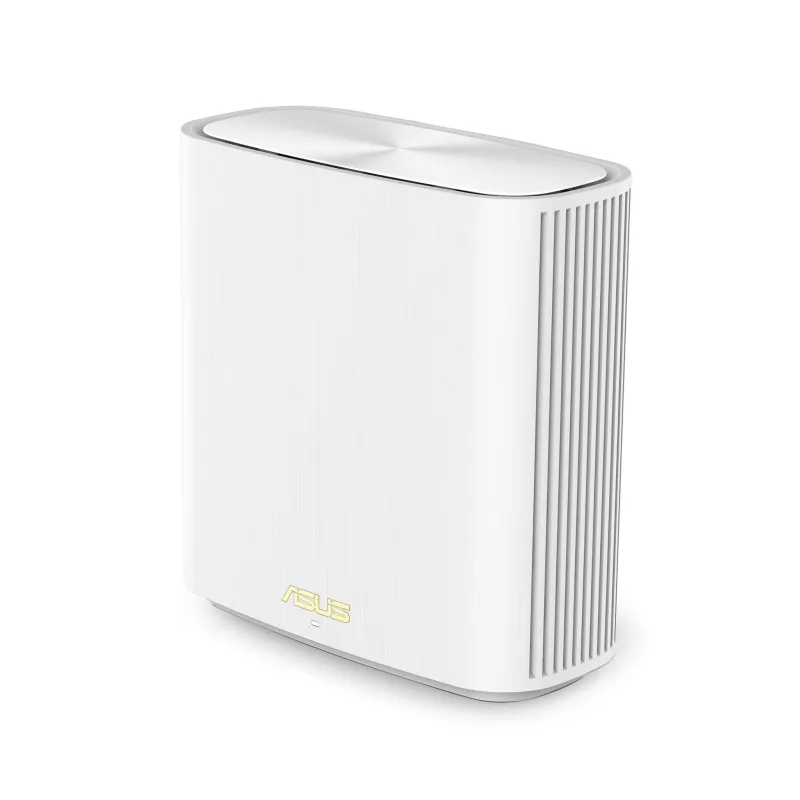

ASUS ZenWiFi XD6 Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 3 Internal
- White
- Antenna type: Internal Antennas quantity: 6
- Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax)
- SSH
- Quality of Service (QoS) support
- DHCP server
- Ethernet WAN
ASUS ZenWiFi
WiFi Coverage Everywhere. Always Secure.
Whole-home Coverage

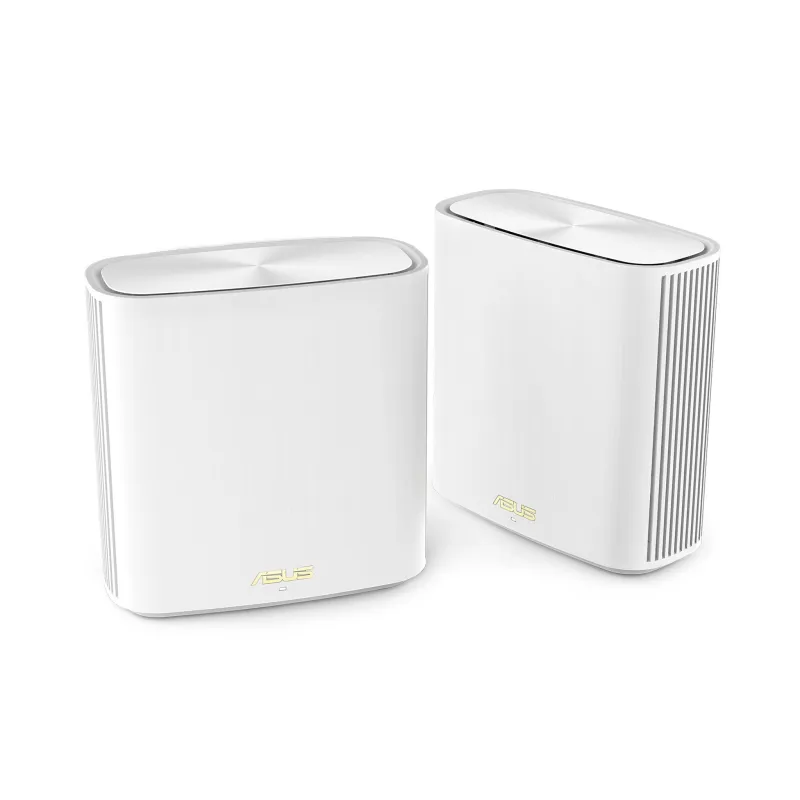

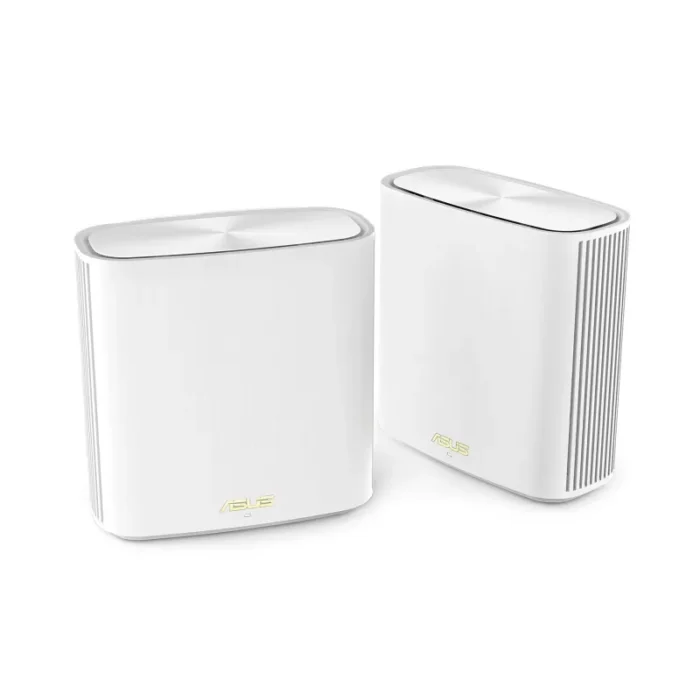

The ZenWiFi XD6 series system consists of a pair of ASUS AX5400 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
Smart & Flexible Backhaul Configuration
ASUS ZenWiFi XD6 series give you alternative backhaul options: Ethernet and WiFi. The router intelligently chooses the most reliable method for you based on connection quality. If you prefer, you can also manually choose the type of backhaul connection.
WiFi 6
True 8K Streaming
ZenWiFi XD6 series put your WiFi into top gear! With a total bandwidth of up to 5400 Mbps, it’s up to 2.2X faster* than WiFi 5 routers**.
*The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
* Compatible WiFi 6 device required.
** The data compares speed of 4×4 11ax on 5GHz 160MHz bandwidth with 1024QAM modulation to speed of 4×4 11ac on 5GHz 80MHz with 256QAM modulation.
*** The number of speed is calculated with data rate of 2.4 GHz band and of 5 GHz band, which are respectively 574 and 4804 Mbps. And the DFS channels may not be supported in some countries due to local regulations.
Easier-than-ever Setup
3-step setup with the ASUS Router app
– Turn on ZenWiFi XD6 series products
– Create a WiFi network name and an admin account
– Wait for several minutes, and you’re done!
What makes ZenWiFi XD6 series setup so easy?
– One-time setup, with auto synchronization for all the hubs in each package
– Hassle-free: each unit can work as the main router or an extender node
Make the Internet a Safer Place for Everyone
AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app
More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via ZenWiFi XD6 series from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi XD6 , you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!
Smart Looks for Smart Homes
ZenWiFi XD6 series work perfectly with smart-home services- including Alexa skills.
Space-saving wall-mount
The iconic design comes with a wall-mount kit. Hang it on the wall or place it anywhere, the choice is yours!
*Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.
AiMesh Technology
Easy setup. Flexible management.
| Design | |
|---|---|
| Reset button | Yes |
| Antennas quantity | 6 |
| Antenna type | Internal |
| LED indicators | Power |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| VPN support | VPN Client L2PTVPN Client OVPNVPN Client PPTPVPN Server IPSecVPN Server OVPNVPN Server PPTP |
| Dynamic DNS (DDNS) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SSH |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| MU-MIMO technology | Yes |
| SSID Broadcast | Yes |
| Parental control | Yes |
| DHCP server | Yes |
| BeamForming | Yes |
| Quality of Service (QoS) support | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Processor cores | 3 |
| Processor frequency | 1.5 GHz |
| Built-in processor | Yes |

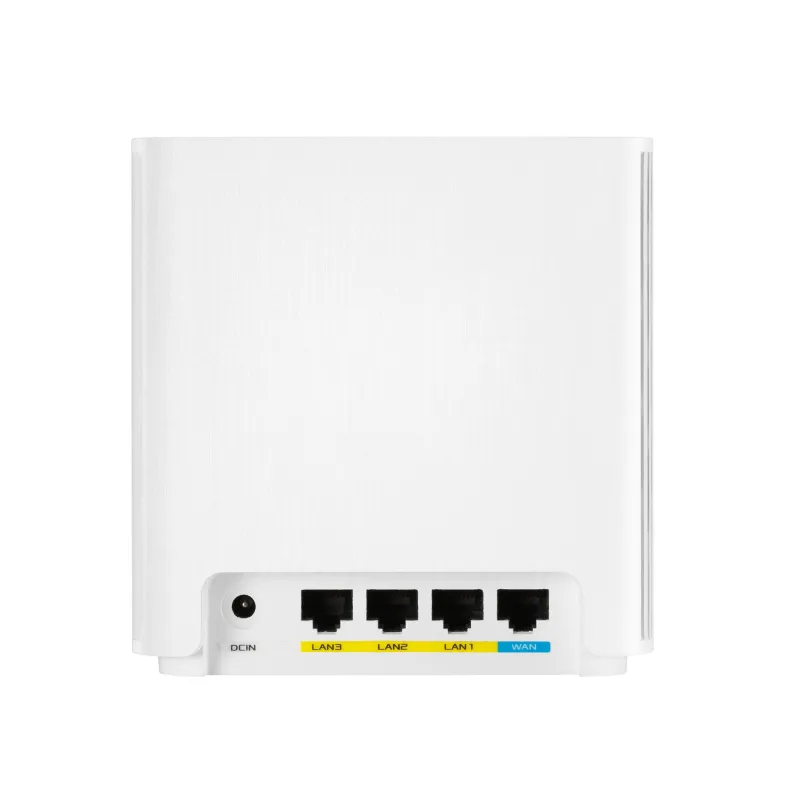

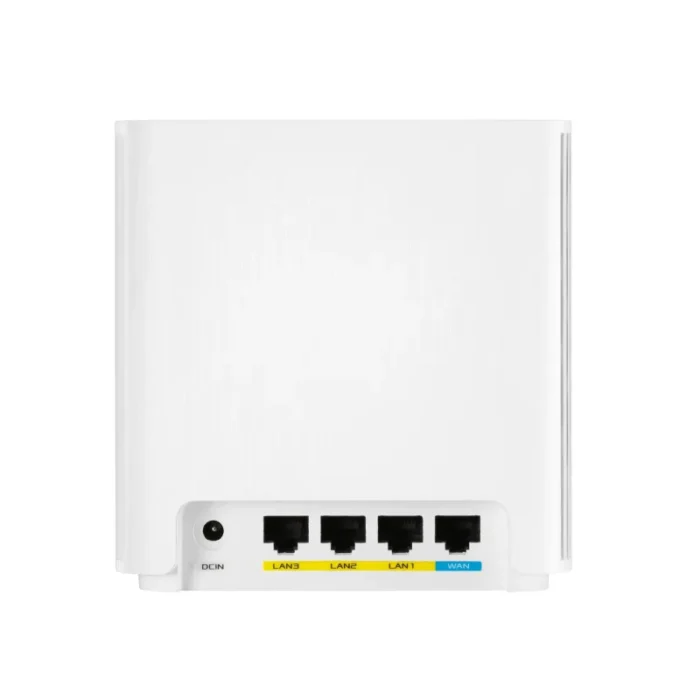

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Power | |
|---|---|
| AC adapter output current | 2 A |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 110 – 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 435 g |
| Height | 129.7 mm |
| Depth | 126.4 mm |
| Width | 59 mm |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85171800 |
