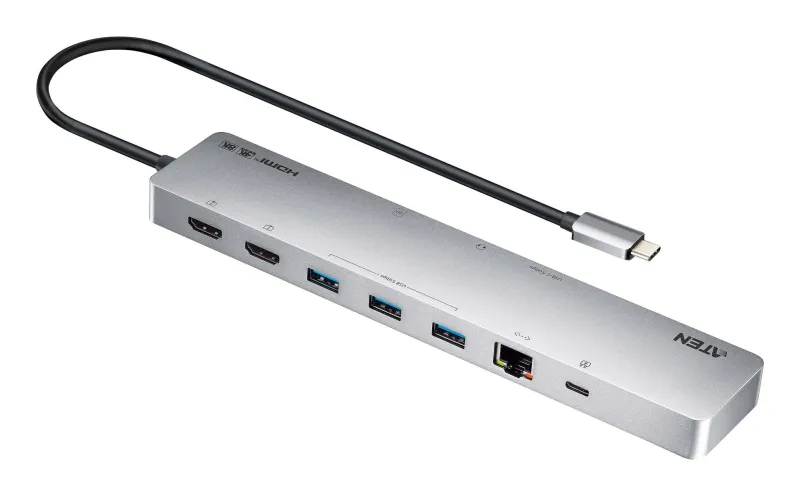

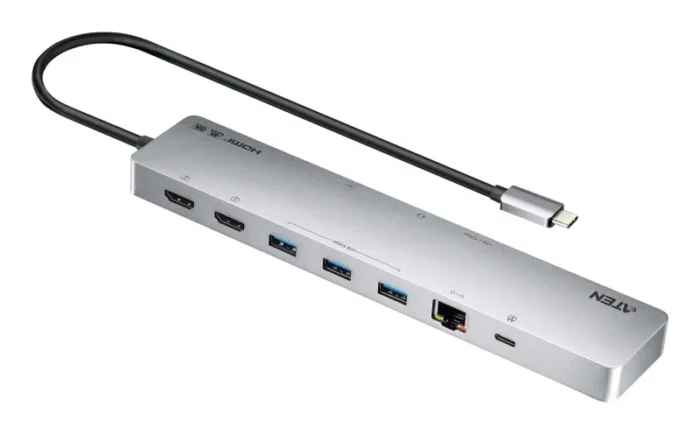

ATEN UH3240 interface hub USB Type-C Silver

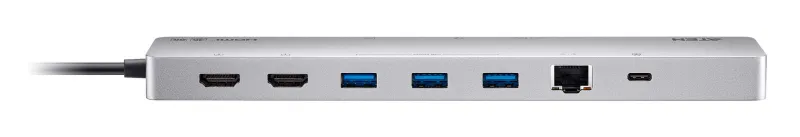

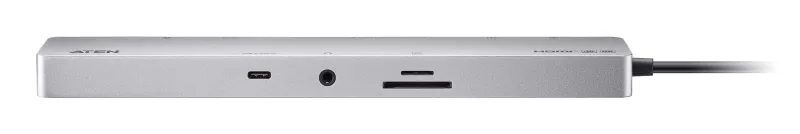

- A multiport dock with 11 essential ports – 2x HDMI, 2x USB-C (1 for power delivery & 1 for data transmission), 3x USB Type-A, 1x SD, 1x Micro SD,1x Ethernet, and 1x audio jack
- Supports up to 8K1 7680 x 4320, 4K 3840 x 2160 @ 120 Hz for single2 video output or 4K for dual video outputs3,4
- Supports USB PD 3.0 for charging up to 100W via USB-C PD power adapter5 – supports PD profile specifications of 5V, 9V, 12V, 15V, and 20V
- USB 3.2 Gen 1 compliant with data transfer rates up to 5 Gbps
- Supports DP 1.4 Alt mode
- Plug-and-play and works with all major operating systems – Windows, macOS X, iOS, iPadOS, and Android
- Compatible with Thunderbolt™ technology (USB-C) and Apple M1 / M2 / M3 chip
- Compact enclosure for space-constrained workspaces
- Drives dual-monitor workstation performance for graphically intense applications such as photo editing and video editing
Transform your laptop into the ultimate workstation with unparalleled productivity.
The UH3240 is a multiport dock that can expand up to 11 devices via a single USB-C cable. The myriad functions are packed into one light, compact dock, as you can charge your device, up to 100W, while transferring data at 5 Gbps.
Dual 4K Display
Expand your professional versatility
Enjoy Impeccable Visual Quality
Optimize your screen resolution to befit the task at hand
Vivid & Sharp 8K Display
Enthralling visual indulgence of entertainment apex
100W Power Delivery with PD 3.0
Power on your devices for your multitasking needs
| Ports & interfaces |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Card reader slot |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Hub interfaces |
3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Host interface |
USB Type-C |
| Ports quantity |
11 |
| Features |
| Cable length |
0.4 m |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Maximum resolution (HDMI) |
3840 x 2160 pixels |
| Maximum refresh rate |
60 Hz |
| Network |
| Ethernet interface type |
Gigabit Ethernet |
| Power |
| Input voltage |
5 V |
| Power consumption (typical) |
18 W |
| Power supply type |
DC |
| System requirements |
| Other operating systems supported |
Android, iOS |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Weight |
180 g |
| Height |
16 mm |
| Depth |
220 mm |
| Width |
43 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
- Quick Start Guide
- leaflet
- manual pdf
- UH3240 11-in-1 USB-C multiport dock.
