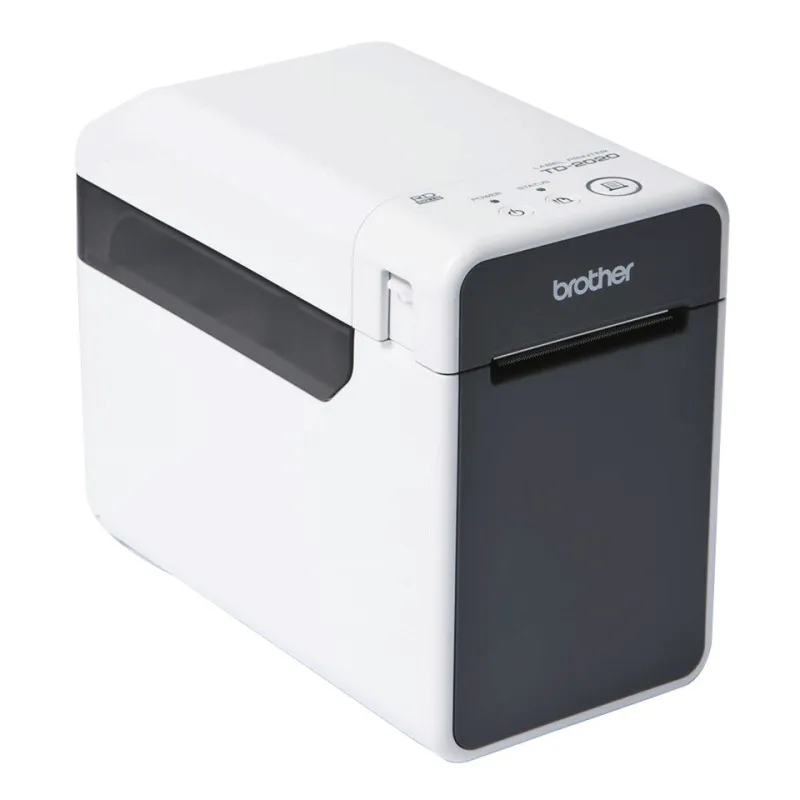

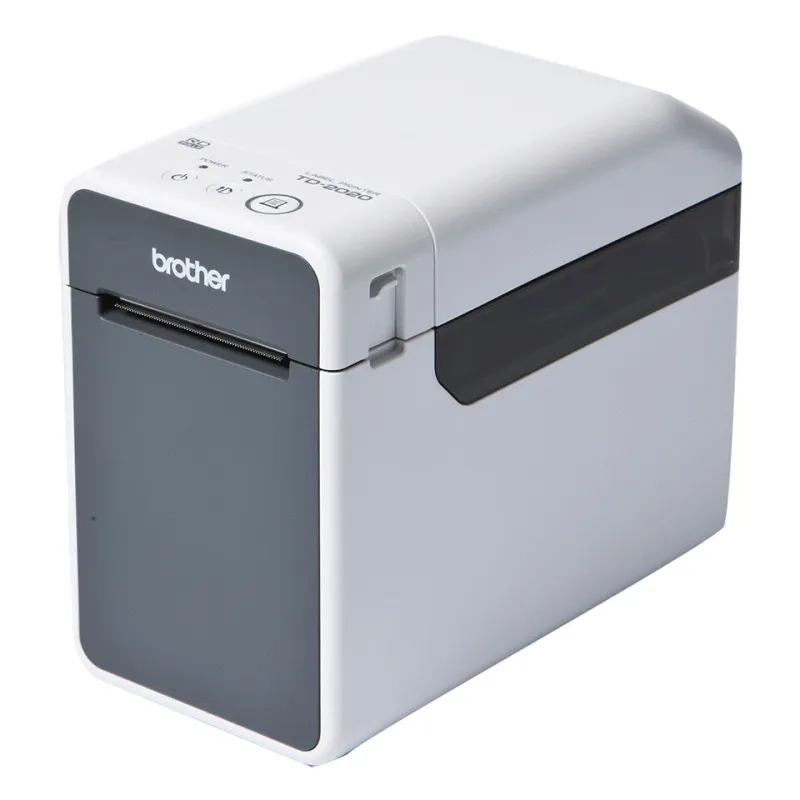

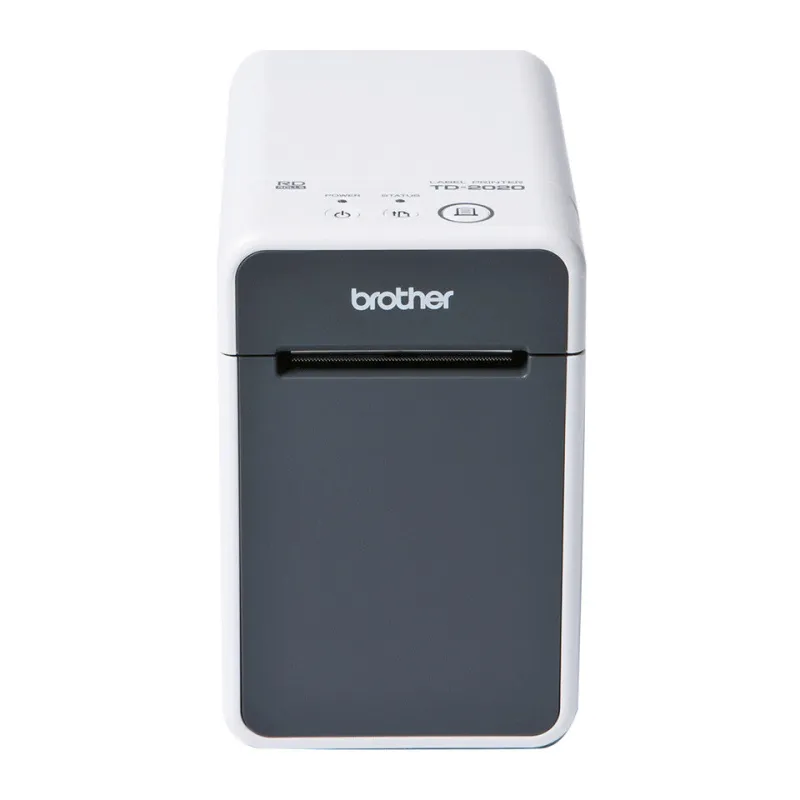

Brother TD-2020A label printer Direct thermal 203 x 203 DPI 152.4 mm/sec Wired
- USB & serial connectivity
- Up to 152mm/second print speed
- High quality 203dpi print resolution
- 256MB RAM, 64MB Flash
- ZPL II printer language emulation
- P-touch Editor 5 software – works on Windows
Designed for use in almost any retail or other work space, the TD-2020A is a compact and fast 56mm wide desktop thermal printer. Perfect for printing price, mark-down, product identification, returns and shelf-edge labels quickly at up to 152mm/second.
Increasing productivity and reducing costs are priorities in any workplace. When it comes to label printing, the TD-2020A combines proven desktop printer performance with new levels of efficiency to help you do more for less.
| Printing | |
|---|---|
| Minimum print length | 6 mm |
| Maximum print height | 9.86 cm |
| Maximum printing width | 5.6 cm |
| Print speed | 152.4 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Media thickness | 0.058 – 0.279 mm |
| Maximum label length | 1 m |
| Core diameter | 2.54 cm |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| Optional connectivity | Serial (RS-232), USB 2.0 |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Underline | Yes |
| Tape cutting | Automatic |
| Number of fonts | 7 |
| Built-in barcodes | CODABAR (NW-7), Code 39, Code 93, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1-128, ITF, MSI, MaxiCode, MicroPDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Internal memory | 6 MB |
| Design | |
|---|---|
| Product colour | White |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 20 – 80% |
| Operating relative humidity (H-H) | 20 – 80% |
| Weight & dimensions | |
|---|---|
| Weight | 2.12 kg |
| Height | 283 mm |
| Depth | 226 mm |
| Width | 181 mm |
| Packaging data | |
|---|---|
| Package weight | 2.83 kg |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Cables included | USB |
| Logistics data | |
|---|---|
| Products per pallet | 108 pc(s) |
| Layers per pallet | 6 pc(s) |
| Master (outer) cases per pallet layer | 6 pc(s) |
| Master (outer) cases per pallet | 36 pc(s) |
| Pallet gross weight | 327.6 kg |
| Pallet gross height | 18.3 cm |
| Technical details | |
|---|---|
| Pallet type | 1200 x 1000 mm |
| Other features | |
|---|---|
| Country of origin | China |
| Character sets | Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8 |
