DrayTek V2865L-5G-K wired router Gigabit Ethernet
- VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router
- Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
- Up to 950Mbps Firewall Throughput for Ethernet WAN
- 5+1 Gigabit RJ-45 LAN Ports
- Up to 800Mbps VPN Throughput with IPsec acceleration
- 32 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 16 DrayTek SSL VPN or OpenVPN Tunnels
- 5G / LTE with Dual-SIMs for Second Backup Telco – New!
- 8 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Compatible with VigorACS Central Management Platform

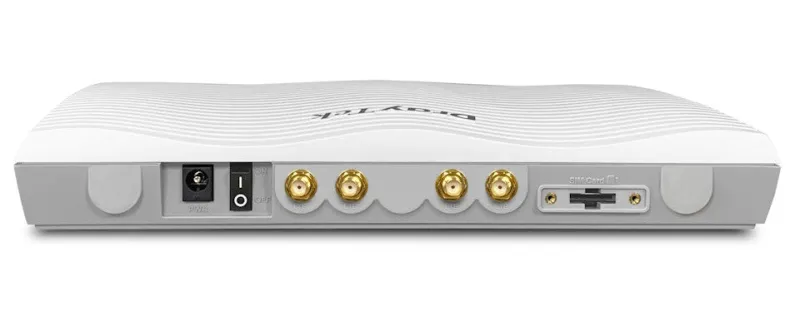

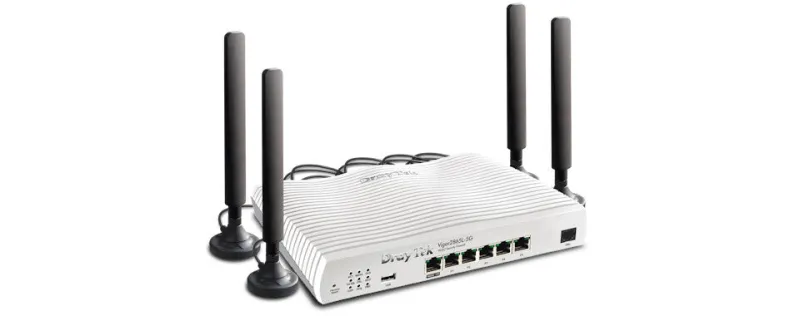

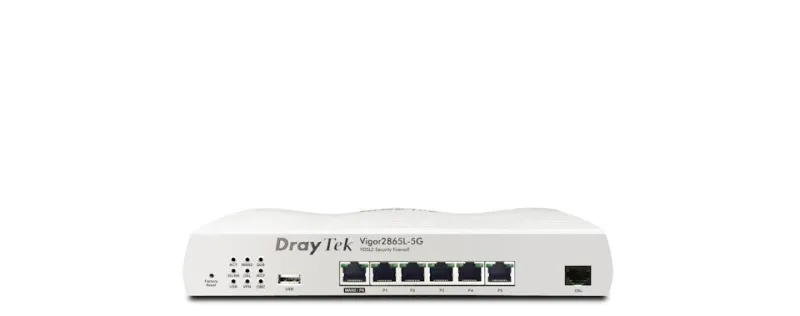

Vigor 2865L-5G VDSL router with integrated 5G modem
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | Yes |
| DSL WAN | Yes |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Differentiated services (DiffServ) supported | Yes |
| Policy-based routing | Yes |
| Port forwarding | Yes |
| Multicast support | Yes |
| Static route | Yes |
| VLAN support | Yes |
| Full duplex | Yes |
| Throughput | 1.3 Gbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Mobile network | |
|---|---|
| Mobile network generation | 5G |
| DSL features | |
|---|---|
| VDSL2 | Yes |
| ADSL2+ | Yes |
| ADSL2 | Yes |
| ADSL | Yes |
| Internal modem | Yes |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Reset button | Yes |
| Interface-based traffic policing | Yes |
| Wake-on-LAN ready | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB version | 2.0 |
| USB ports quantity | 1 |
| RJ-11 ports quantity | 1 |
| WAN/Ethernet LAN ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Protocols | |
|---|---|
| Routing protocols | BGP, RIP |
| DMZ support | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| VPN support | IPsec, SSL, OpenVPN, WireGuard, PPTP, L2TP |
| VPN tunnels quantity | 32 |
| System event log | Yes |
| Guest access | Yes |
| Network address translation (NAT) | Yes |
| Access Control List (ACL) | Yes |
| ICMP attack prevention | Yes |
| ARP attack prevention | Yes |
| DoS attack prevention | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| Firewall | Yes |
| Security algorithms | 3DES, AES, HTTPS, IPSec, MD5, MSCHAPv2, SHA-1, SHA-2, SHA-256, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS, TLS, WEP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-Personal, WPA2-RADIUS, WPA2-TKIP, WPA3, WPA3-EAP, WPA3-Enterprise, WPA3-PSK, WPA3-Personal |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| Certificates | |
|---|---|
| PSTI certified | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Design | |
|---|---|
| On/off switch | Yes |
| Wall mountable | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Housing material | Plastic |
| Power | |
|---|---|
| Power source type | AC |
| Power consumption (max) | 31.2 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 600 g |
| Height | 44 mm |
| Depth | 165 mm |
| Width | 241 mm |
| Packaging data | |
|---|---|
| Package type | Box |
