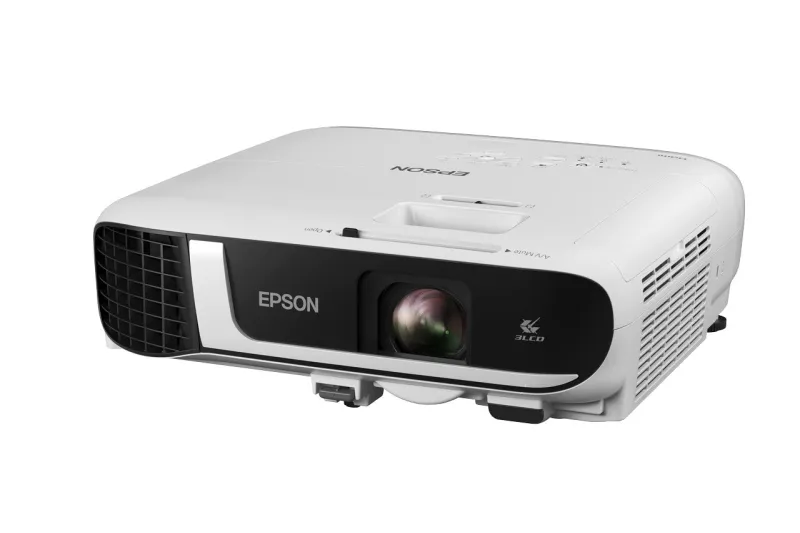

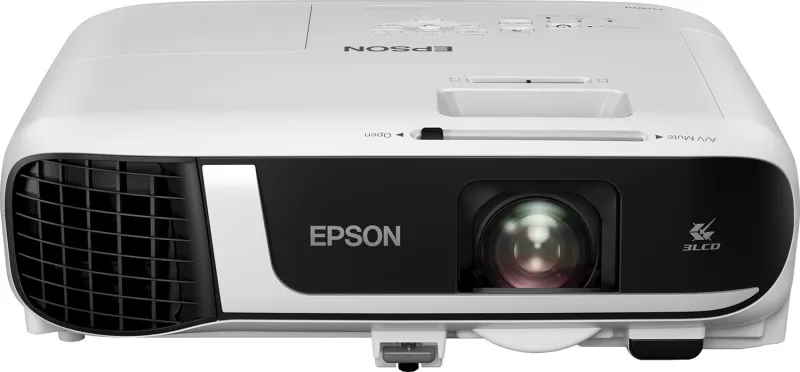

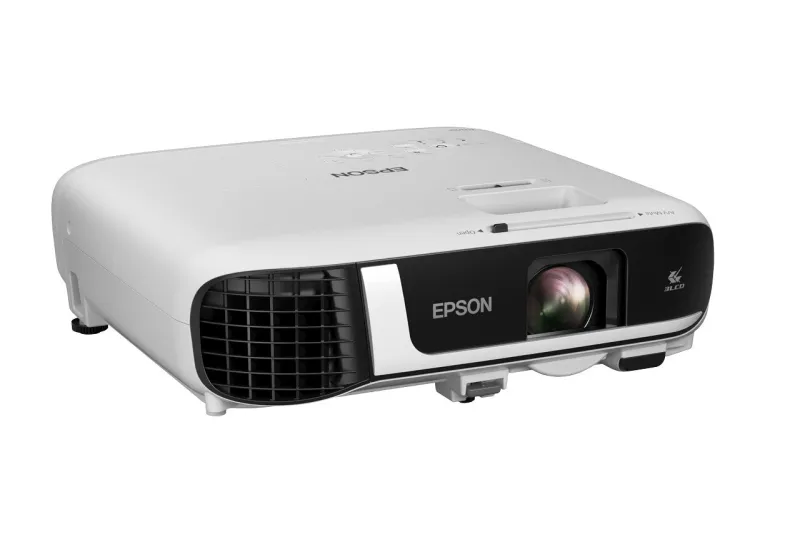

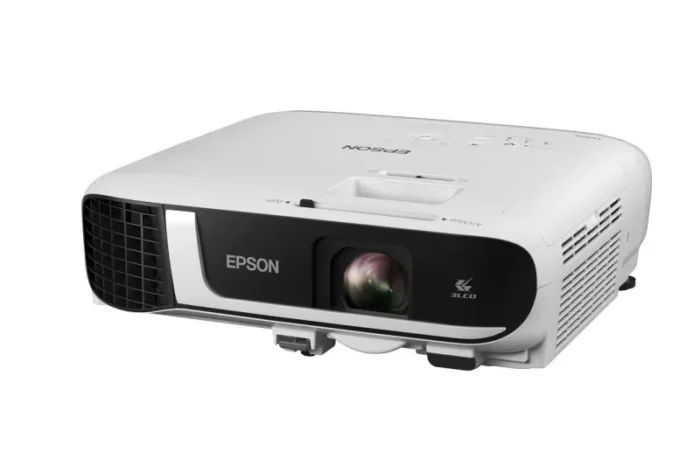

Epson EB-FH52 Standard throw projector 4000 ANSI lumens 3LCD 1080p (1920×1080) White
- Wireless Full HD bright images, supports lightning fast 240Hz refresh rate: 3LCD technology and equally high white and colour light output
- Contrast ratio of 16,000:1: Deep, rich blacks and dense shadow areas
- Steam and share connectivity: Built-in wireless connectivity and Screen Mirroring
- Smart cost savings: Lamp life up to 12,000 hours in Eco mode
- Versatile and flexible control: Project from different sources with HDMI input and mobile connectivity
Maximum impact, minimum effort
Whatever the professional setting, and whenever it’s called on, the EB-FH52 is your ultimate wireless projection partner. Perfect for delivering crisp, clear presentations or viewing video content, its stylish design makes the right impression in every working environment, while Full HD display and high-brightness 4,000 lumens output make for unbeatable all-round content visibility. But great performance doesn’t mean a compromise on reliability. Reliable 3LCD technology keeps intervention and maintenance to an absolute minimum – leaving you to enjoy years of high-quality, interruption-free meetings.
Bright and fast meets big and flexible
There’s fast, and then there’s EB-FH52 fast. Lightning-quick 240hz refresh rate ensures ultra-smooth viewing, no matter how fast-paced the on-screen visuals may be. View content like never before and pick out even the finest detail with crisp, clear images with a scalable screen size up to 300 inches. The combination of a high brightness, high contrast ratio of 16,000:1, and Full HD 1080p content provides superior image quality and a viewing experience that is easy on the eye, even in high ambient lighting conditions.
Make the right impression for years to come
Forget time lost to unwanted interventions, and look forward to hassle free presentations, time after time. The EB-FH52 promises long lamp life (12,000 hours in Eco mode), giving you years of high-impact use before it requires any maintenance.
The display solution that works around you
Need flexibility and adaptability? The EB-FH52 has both in abundance. With automatic vertical and manual horizontal keystone correction, along with wide optical zoom, you’re free to choose where the projector fits best into your room, workspace or office, without any concern about image distortion.
Connect, collaborate and communicate
Connectivity couldn’t be simpler with the EB-FH52. Built-in wireless connectivity gives you easy and intuitive access to the projector from compatible smart devices using the iProjection App1. You can even display content from more than one device simultaneously without the need for two separate displays, and enjoy the freedom to move around and engage with your audience without impeding the presentation. To complete the immersive experience, high-quality sound is delivered via a built-in 16W speaker to allow audio content to be heard clearly, making additional external speakers a thing of the past.
| Projector | |
|---|---|
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -30 – 30° |
| Matrix size | 1.55 cm (0.61″) |
| Vertical scan range | 192 – 240 Hz |
| Projector brightness (economic mode) | 2400 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Projection distance | 1.76 – 2.86 m |
| Screen size compatibility | 762 – 7620 mm (30 – 300″) |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 16000:1 |
| Projector native resolution | 1080p (1920×1080) |
| Projection technology | 3LCD |
| Projector brightness | 4000 ANSI lumens |
| Light source | |
|---|---|
| Lamp power | 230 W |
| Lamp type | UHE |
| Service life of light source (economic mode) | 12000 h |
| Service life of light source | 5500 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Throw ratio | 1.32 – 2.14:1 |
| Zoom ratio | 1.6:1 |
| Zoom type | Manual |
| Aperture range (F-F) | 1.51 – 1.99 |
| Focal length range | 18.2 – 29.2 mm |
| Focus | Manual |
| Video | |
|---|---|
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Full HD | Yes |
| Ports & interfaces | |
|---|---|
| Audio (L/R) in | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | Philippines |
| Noise level (standby) | 28 dB |
| Noise level (economic mode) | 28 dB |
| Noise level | 37 dB |
| Multimedia | |
|---|---|
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop |
| Product colour | White |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (economy mode) | 225 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 327 W |
| Power source | AC |
| Software | |
|---|---|
| Software support | via: AMX, Crestron (Network) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 5 – 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 4.81 kg |
| Package height | 170 mm |
| Package depth | 390 mm |
| Package width | 385 mm |
| Height | 90 mm |
| Depth | 282 mm |
| Width | 309 mm |
| Weight | 3.1 kg |
| Packaging content | |
|---|---|
| Bundled software | Epson Projektor Management |
| Warranty card | Yes |
| Carrying case | Yes |
| Cables included | AC, HDMI |
| Quick start guide | Yes |
| WLAN adapter included | Yes |
| Technical details | |
|---|---|
| USB display function | 3 in 1: Image / Mouse / Sound |
| Logistics data | |
|---|---|
| Products per pallet | 72 pc(s) |
| Products per pallet (UK) | 72 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
