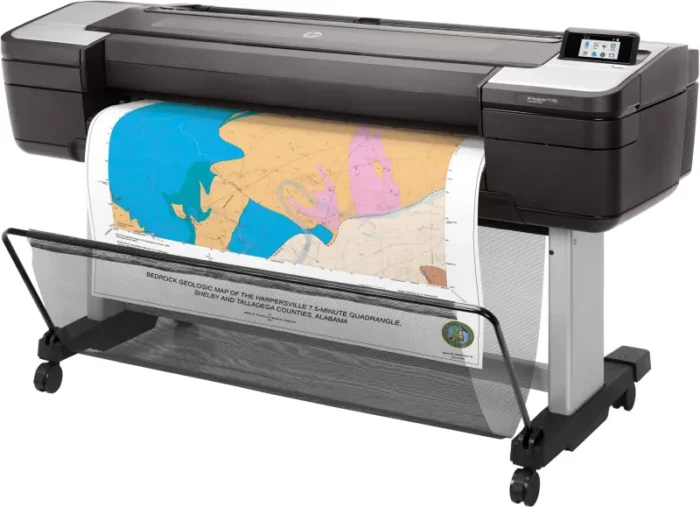

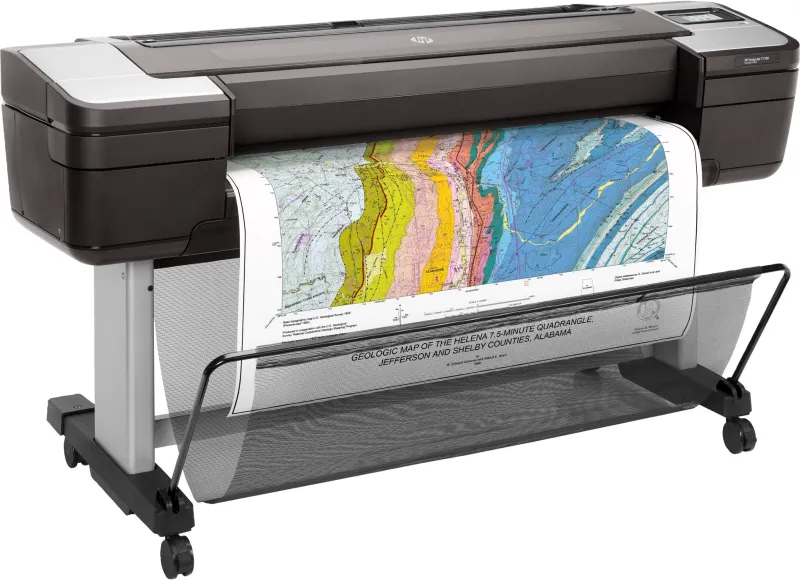

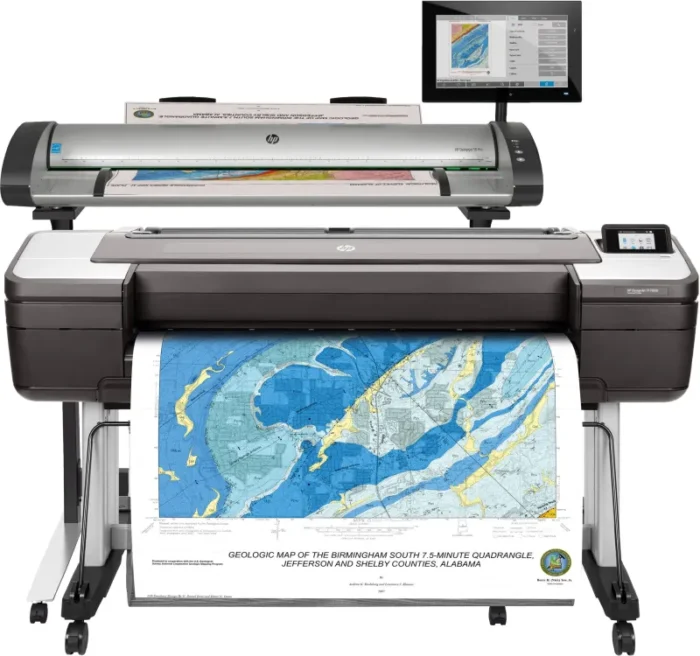

HP Designjet T1700dr 44-in Printer
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
| Print speed (normal quality, A1) |
116 pph |
| Print head |
3 |
| Printing colours |
Cyan, Grey, Magenta, Matte black, Photo black, Yellow |
| Page description languages |
TIFF, HP-GL/2, URF, JPEG, CALS G4 |
| Number of print cartridges |
6 |
| Print resolution colour |
2400 x 1200 DPI |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Thermal inkjet |
| Scanning |
| Accuracy |
0.1% |
| Scanning |
No |
| Paper handling |
| Roll paper |
Yes |
| Roll top margin |
3 mm |
| Print margin roll |
3 mm |
| Media thickness |
0.8 mm |
| Cut sheets |
Yes |
| ISO A-series sizes (A0…A9) |
A0, A1, A2, A3, A4 |
| Paper tray media types |
Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Satin paper, Semi-glossy paper |
| Maximum print size |
1118 x 1676 mm |
| Ports & interfaces |
| Mobile printing technologies |
HP ePrint |
| RJ-45 ports quantity |
1 |
| Wi-Fi Direct |
Yes |
| USB 2.0 ports quantity |
1 |
| USB connector |
USB Type-A |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Performance |
| Certification |
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Sound power level (standby) |
5 dB |
| Storage media |
HDD |
| Internal storage capacity |
500 GB |
| Brand-specific features |
| HP dynamic security |
Yes |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (standby) |
24 W |
| Power consumption (typical) |
100 W |
| Power consumption (off) |
0.1 W |
| Power consumption (sleep) |
0.3 W |
| Operational conditions |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 40 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
89.4 kg |
| Height |
998 mm |
| Depth |
695 mm |
| Width |
1802 mm |
| Packaging data |
| Bundled software |
HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS |
| Package weight |
128 kg |
| Package height |
710 mm |
| Package depth |
770 mm |
| Package width |
1955 mm |
| General |
| Product family |
Designjet |
