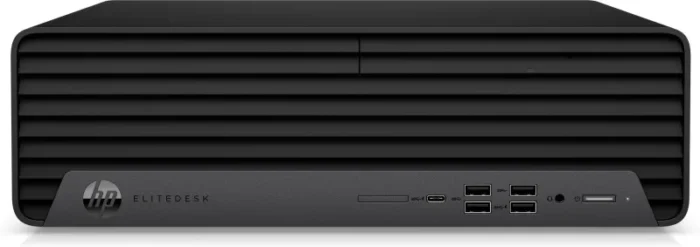

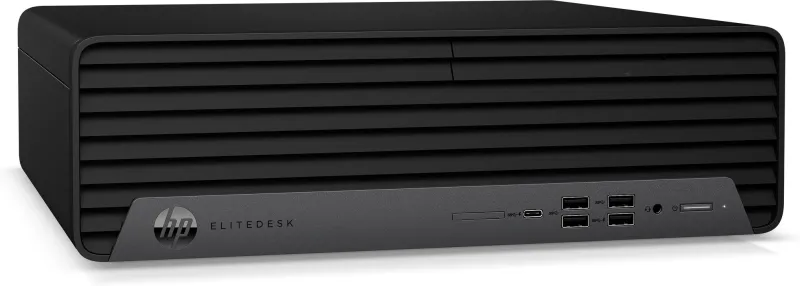

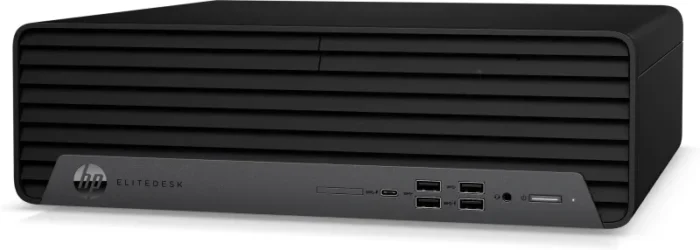

HP EliteDesk 800 G6 Intel® Core™ i5 i5-10500 16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF PC Black
- Intel® Core™ i5-10500 (3.1 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores)
- Windows 10 Pro
- Intel® UHD Graphics 630
- 16 GB memory; 256 GB SSD storage
All the power, neatly packaged
The redesigned HP EliteDesk 800 Small Form Factor delivers high performance and broad expandability in a compact business-class SFF PC. Featuring powerful components, and strong security, this small PC handles big workloads.
| Processor |
| Memory bandwidth supported by processor (max) |
41.6 GB/s |
| Memory clock speeds supported by processor |
2666 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
128 GB |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1×16, 2×8, 1×8+2×4 |
| PCI Express slots version |
3.0 |
| Tjunction |
100 °C |
| Processor codename |
Comet Lake |
| Thermal Design Power (TDP) |
65 W |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| System bus rate |
8 GT/s |
| Processor cache type |
L3 |
| Processor cache |
12 MB |
| Processor socket |
LGA 1200 (Socket H5) |
| Processor frequency |
3.1 GHz |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
i5-10500 |
| Processor generation |
10th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory clock speed |
2666 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| SSD interface |
NVMe |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card ID |
0x9BC8 |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card dynamic frequency (max) |
1150 MHz |
| Maximum on-board graphics card memory |
64 GB |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Headphone outputs |
1 |
| Microphone in |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| DVI port |
No |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
| Expansion slots |
| PCI Express x16 (Gen 3.x) slots |
2 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| Design |
| Product colour |
Black |
| Chassis type |
SFF |
| Performance |
| Motherboard chipset |
Intel Q470 |
| Market positioning |
Business |
| Product type |
PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Clear Video Technology |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel 64 |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
No |
| Intel® Secure Key |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® OS Guard |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Processor package size |
37.5 x 37.5 mm |
| Intel Trusted Execution Technology |
Yes |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| Execute Disable Bit |
Yes |
| Scalability |
1S |
| CPU configuration (max) |
1 |
| Thermal solution specification |
PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Processor ARK ID |
199277 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Brand-specific features |
| HP segment |
Business |
| HP Management tools |
HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP Cloud Recovery; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 4; HP Image Assistant Gen 5 |
| HP Support Assistant |
Yes |
| HP JumpStart |
Yes |
| Certificates |
| Low halogen |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Sustainable technologies and materials |
Low halogen |
| Weight & dimensions |
| Package weight |
9 kg |
| Package height |
230 mm |
| Package depth |
499 mm |
| Package width |
399 mm |
| Weight |
6.13 kg |
| Height |
100 mm |
| Depth |
308 mm |
| Width |
338 mm |
| Packaging content |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
EliteDesk |
| Product series |
800 |
| Logistics data |
| Harmonized System (HS) code |
84715000 |
