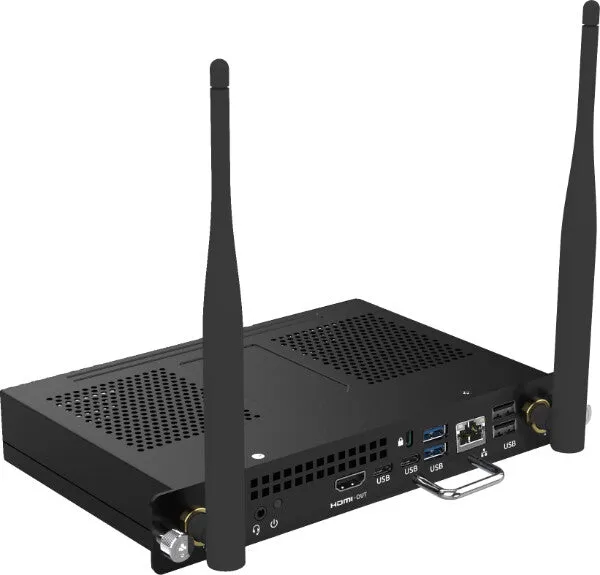

iiyama OPC51201CC-1 PC/workstation Intel® Core™ i5 i5-1240P 16 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Mini PC Black
- OPS Mini PC Black 95 W
- Intel® Core™ i5 i5-1240P 3.3 GHz
- 16 GB DDR4-SDRAM
- 256 GB SSD
- Intel Iris Xe Graphics
- Ethernet LAN Wi-Fi 6 (802.11ax) Bluetooth 5.3
- Windows 11 IoT Enterprise
This mini OPS PC with Intel® Core i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51201CC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1meter distance. Simply slide in the iiyama OPS slot PC and get started right away.
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Efficient cores | 8 |
| Performance cores | 4 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 4.4 GHz |
| Processor threads | 16 |
| Processor cores | 12 |
| Processor model | i5-1240P |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| SSD interface | M.2 |
| SSD capacity | 256 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Design | |
|---|---|
| Product colour | Black |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Market positioning | OPS |
| Product type | Mini PC |
| Software | |
|---|---|
| Operating system installed | Windows 11 IoT Enterprise |
| Power | |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power supply | 95 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 95% |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage temperature (T-T) | -10 – 50 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 950 g |
| Weight | 750 g |
| Height | 30 mm |
| Depth | 180 mm |
| Width | 119 mm |
