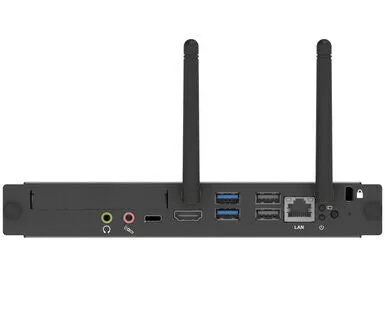

iiyama OPC5801BC PC/workstation Intel® Core™ i5 i5-8265U 8 GB DDR4-SDRAM 256 GB Windows 10 IoT Enterprise Mini PC Black
- Intel UHD Graphics, Intel
- Intel i5-8265U
- 8GB RAM
- Bluetooth 5.0
This mini OPS PC with Intel® Core™ i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama OPS slot PC and get started right away.
| Processor |
| Configurable TDP-down |
10 W |
| Configurable TDP-down frequency |
0.8 GHz |
| Configurable TDP-up frequency |
1.8 GHz |
| Configurable TDP-up |
25 W |
| Bus type |
OPI |
| Processor model |
i5-8265U |
| Processor generation |
8th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics 620 |
| On-board GPU manufacturer |
Intel |
| On-board graphics card |
Yes |
| Network |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
No |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Design |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Performance |
| Product type |
Mini PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 IoT Enterprise |
| Processor special features |
| Intel Clear Video Technology |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) version |
0.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI version |
0.00 |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Trusted Execution Technology |
No |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
No |
| Intel Flex Memory Access |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel Smart Response Technology version |
1.00 |
| Power |
| Power consumption (typical) |
60 W |
| Power consumption (standby) |
1.2 W |
| Power supply |
60 W |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Package height |
72 mm |
| Package depth |
192 mm |
| Package width |
267 mm |
| Weight |
740 g |
| Height |
30 mm |
| Depth |
133 mm |
| Width |
202 mm |
| Packaging content |
| Display included |
No |
| Logistics data |
| Harmonized System (HS) code |
84715000 |
