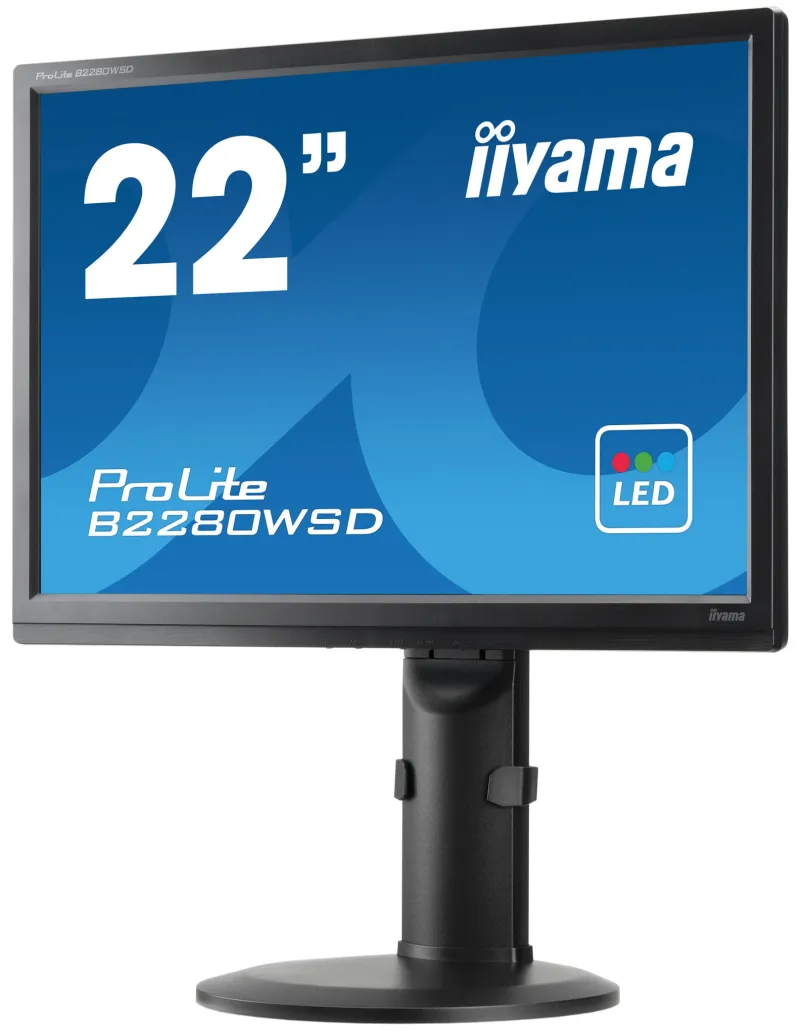

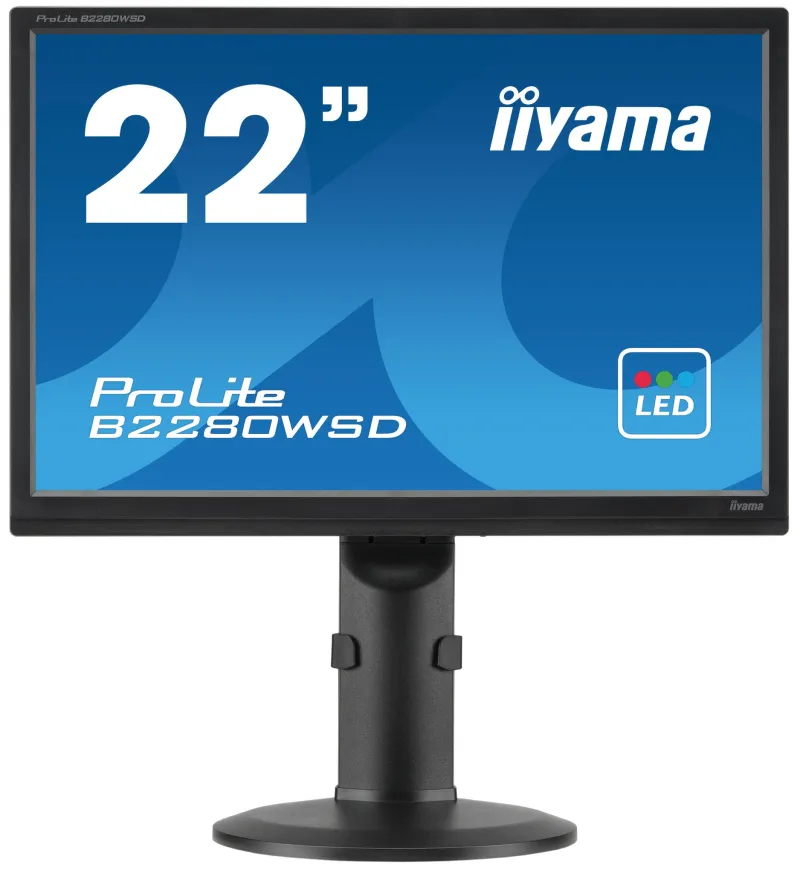

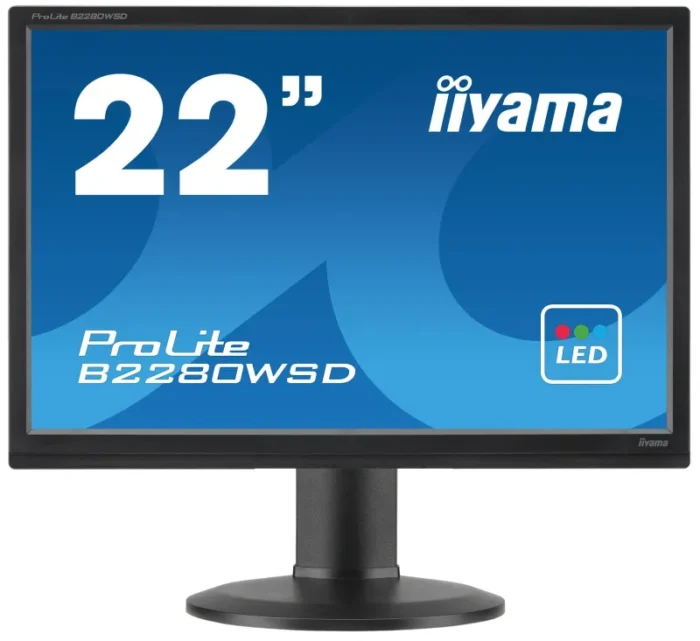

iiyama ProLite B2280WSD-B1 LED display 55.9 cm (22″) 1680 x 1050 pixels Black
- 55.9 cm (22″) LED TN
- 1680 x 1050 pixels 16:10
- 5 ms 250 cd/m² 1000:1
- E 15 kWh 21 W
The ProLite B2280WSD is a high specification 22’’ 1680×1050 LED-backlit monitor with Height Adjustability and Screen Rotation allowing you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort. 5msec black-to-black response time and 5 000 000 : 1 Advanced Contrast Ratio make the B22080WSD ideal for Video Conferencing, DTP and CAD as well as the usual text based applications. Analogue and DVI inputs ensure compatibility with the latest systems and associated graphics cards. The monitor is TCO and Energy Star Certified.
LED-Backlit
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
VESA
VESA mount compliance means you can easily mount your monitor to a wall.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
Height Adjustable Stand
A Height Adjustable Stand allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort which benefits not only your health but also productivity.
Pivot
Screen rotation means you can change the position of the screen from landscape into portrait. This feature can be very handy while working with long spreadsheets or texts.
| Display | |
|---|---|
| Separate H/V sync | Yes |
| 3D | No |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 47.4 cm |
| Vertical scan range | 55 – 75 Hz |
| Horizontal scan range | 24 – 80 kHz |
| Pixel pitch | 0.282 x 0.282 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (dynamic) | 5000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
| Screen shape | Flat |
| Display surface | Matt |
| Response time | 5 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | TN |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1680 x 1050 pixels |
| Display diagonal | 55.9 cm (22″) |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Number of OSD languages | 9 |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 – 22° |
| Tilt adjustment | Yes |
| Swivel angle range | -160 – 160° |
| Swivelling | Yes |
| Pivot angle | 0 – 90° |
| Pivot | Yes |
| Adjustable height (max) | 13 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 352005 |
| Energy efficiency scale | A to G |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 21 W |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Energy efficiency class (SDR) | E |
| Weight & dimensions | |
|---|---|
| Height (without stand) | 348.5 mm |
| Depth (without stand) | 48.5 mm |
| Width (without stand) | 512.5 mm |
| Weight (with stand) | 5.5 kg |
| Height (with stand) | 423.5 mm |
| Depth (with stand) | 244.5 mm |
| Width (with stand) | 512.5 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| TV tuner integrated | No |
| On/off switch | Yes |
| Display | LED |
| Thin Client | |
|---|---|
| Thin client installed | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
