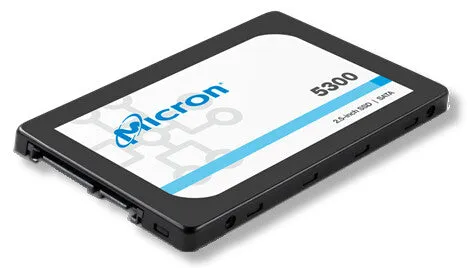

Lenovo 4XB7A17079 internal solid state drive 3.84 TB 2.5″ Serial ATA III 3D TLC NAND
- 3.84 TB 2.5″ Serial ATA III
- Read speed: 540 MB/s
- Write speed: 520 MB/s
- 3D TLC NAND
- Hardware encryption 256-bit AES
- Component for: Server/workstation
The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 3000000 h |
| Hot-swap | Yes |
| Write latency | 350 µs |
| Read latency | 175 µs |
| Write speed | 520 MB/s |
| Read speed | 540 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 3.84 TB |
| Power | |
|---|---|
| Power consumption (write) | 3.8 W |
| Power consumption (read) | 2.5 W |
| Weight & dimensions | |
|---|---|
| Weight | 70 g |
| Operational conditions | |
|---|---|
| Vibration resistance | 3.13 G |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
