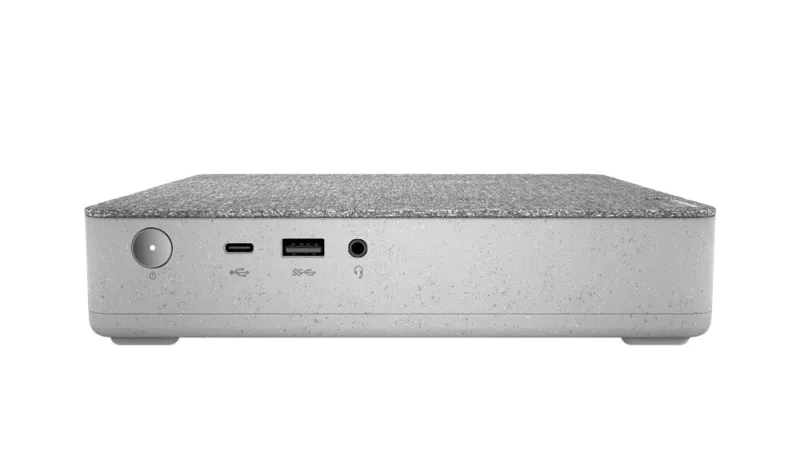

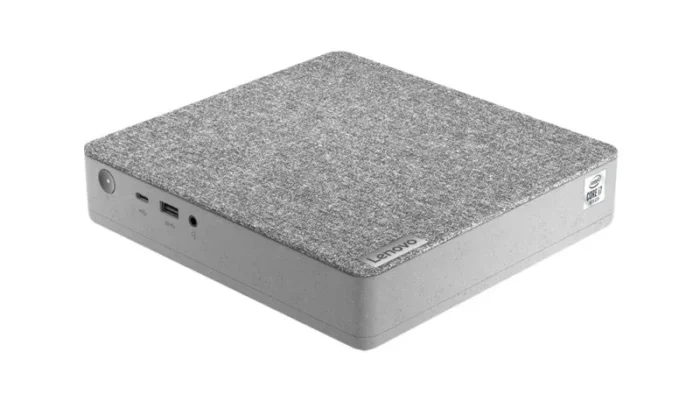

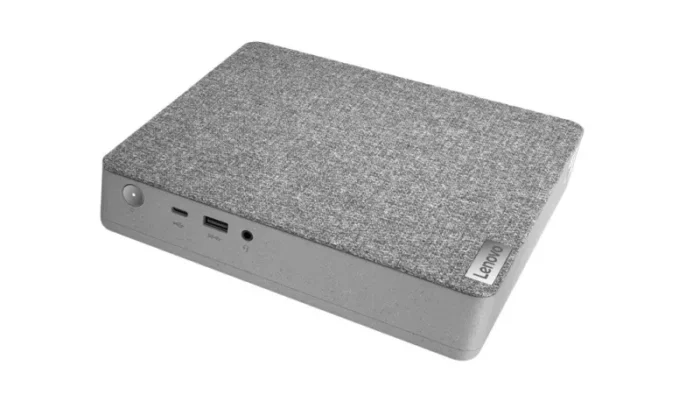

Lenovo IdeaCentre Mini 5 Intel® Core™ i7 i7-10700T 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Home Mini PC Grey
- Intel Core i7-10700T (8C/16T, 2.0/4.5GHz, 16MB)
- 2x 8GB SO-DIMM DDR4-2933
- 512GB SSD M.2 2242 PCIe NVMe
- Intel UHD Graphics 630
- Windows 11 Home 64
Mini. But mighty.
The IdeaCentre Mini 5i packs a deceptively powerful punch into an ultracompact, user-friendly package—complete with elegant textile accents. Its 10th generation Intel® Core™ i7 processors, fast DDR4 memory, reliable storage, and full fleet of ports make it a great option for your everyday computing needs.
| Processor |
| Number of processors installed |
1 |
| Configurable TDP-down |
25 W |
| Configurable TDP-down frequency |
1.3 GHz |
| Processor cache type |
Smart Cache |
| Processor cache |
16 MB |
| Processor frequency |
2 GHz |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
16 |
| Processor cores |
8 |
| Processor model |
i7-10700T |
| Processor generation |
10th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Memory clock speed |
3200 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
32 GB |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| DVI port |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| Design |
| Product colour |
Grey |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Volume |
1 L |
| Colour name |
Mineral Grey |
| Chassis type |
Mini PC |
| Performance |
| Password protection type |
HDD, Power on, Supervisor |
| Password protection |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC233VB |
| Motherboard chipset |
Intel H470 |
| Product type |
Mini PC |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Processor special features |
| Intel Clear Video Technology |
Yes |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Certificates |
| Certification |
ErP Lot 3 |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
1.48 kg |
| Height |
40 mm |
| Depth |
182.4 mm |
| Width |
194 mm |
| Packaging content |
| Keyboard included |
No |
| Mouse included |
No |
| Display included |
No |
| General |
| Product family |
IdeaCentre |
