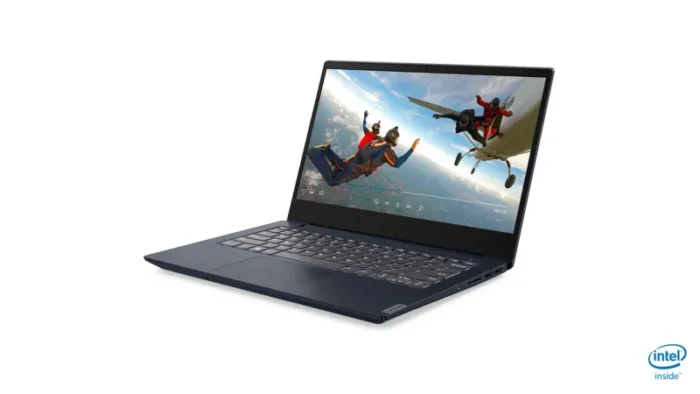

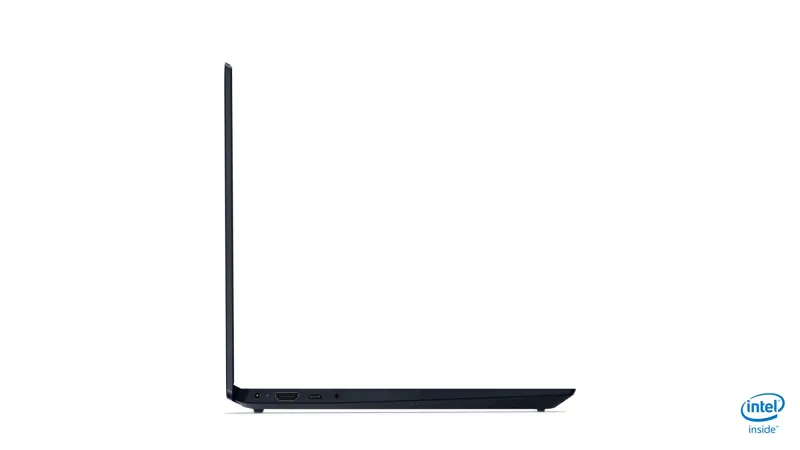

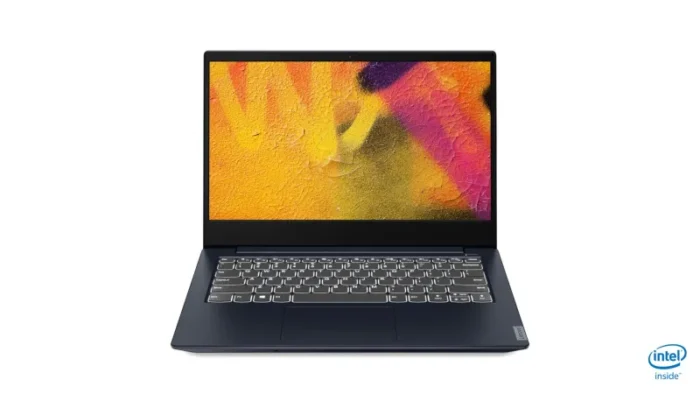

Lenovo IdeaPad S340-14IIL Intel® Core™ i3 i3-1005G1 Laptop 35.6 cm (14″) Full HD 4 GB DDR4-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Home in S mode Blue
- Intel Core i3-1005G1 (2C/4T, 1.2/3.4GHz, 4MB)
- 4GB DDR4-2666
- 128GB SSD M.2 2242 PCIe 3.0×2 NVMe
- Intel UHD Graphics
- Windows 10 Home in S mode
Comfortable confidence
If you’re looking for powerful Intel® processing in a 14” laptop, the IdeaPad S340 is the choice for you. It’s thin and light for easy portability. Narrow bezels let you get the most out of the display. Thoughtful design details, like the privacy shutter that puts you in charge of your webcam, complete your experience.
| Design |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor |
Clamshell |
| Colour name |
Abyss Blue |
| Product colour |
Blue |
| Product type |
Laptop |
| Display |
| Display brightness |
220 cd/m² |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
TN |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| PCI Express slots version |
3.0 |
| Tjunction |
100 °C |
| Configurable TDP-down |
13 W |
| Configurable TDP-down frequency |
0.9 GHz |
| Thermal Design Power (TDP) |
15 W |
| Processor operating modes |
64-bit |
| Processor lithography |
10 nm |
| Processor socket |
BGA 1526 |
| Processor cache type |
Smart Cache |
| Processor cache |
4 MB |
| System bus rate |
4 GT/s |
| Processor frequency |
1.2 GHz |
| Processor boost frequency |
3.4 GHz |
| Processor threads |
4 |
| Processor cores |
2 |
| Processor model |
i3-1005G1 |
| Processor generation |
10th gen Intel® Core™ i3 |
| Processor family |
Intel® Core™ i3 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
8 GB |
| Memory slots |
1x SO-DIMM |
| Memory clock speed |
2666 MHz |
| Memory form factor |
On-board + SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| Compatible memory cards |
MMC, SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
128 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
128 GB |
| Storage media |
SSD |
| Total storage capacity |
128 GB |
| Graphics |
| On-board graphics card ID |
0x8A56 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card base frequency |
300 MHz |
| On-board graphics card dynamic frequency (max) |
900 MHz |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Built-in subwoofer |
No |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Audio |
| Camera |
| Privacy camera |
Yes |
| Front camera HD type |
HD |
| Front camera resolution (numeric) |
1 MP |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
1×1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
1.4b |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
| Numeric keypad |
No |
| Keyboard backlit |
No |
| Pointing device |
Touchpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home in S mode |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel TSX-NI |
No |
| Intel 64 |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
50 x 25 mm |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
196588 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0, AVX-512 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Battery |
| Fast charging |
Yes |
| Battery life (max) |
6 h |
| Battery capacity |
36 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| DC-in jack |
Yes |
| AC adapter power |
45 W |
| Security |
| Password protection type |
HDD, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
No |
| Certificates |
| Certification |
ErP lot3 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Height |
17.9 mm |
| Depth |
230.5 mm |
| Width |
322.7 mm |
| Weight |
1.6 kg |
| General |
| Product family |
IdeaPad |
| Product series |
S |
