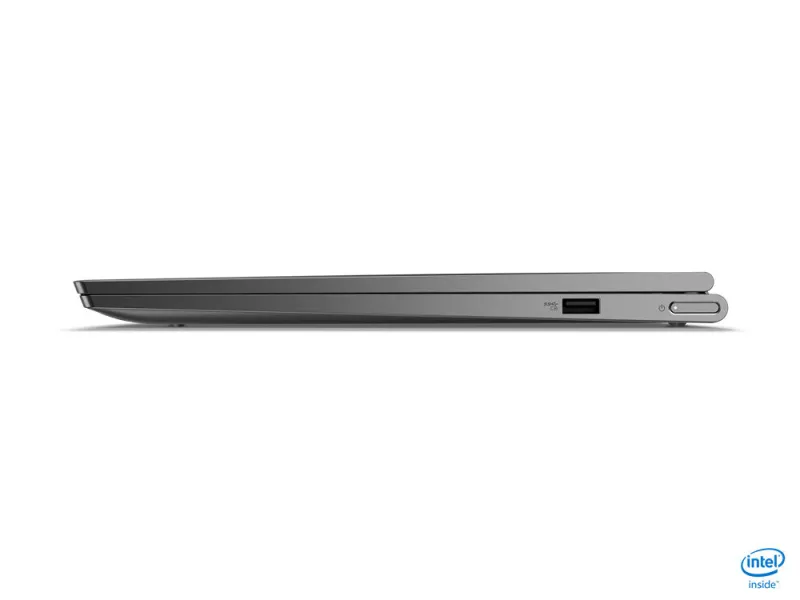

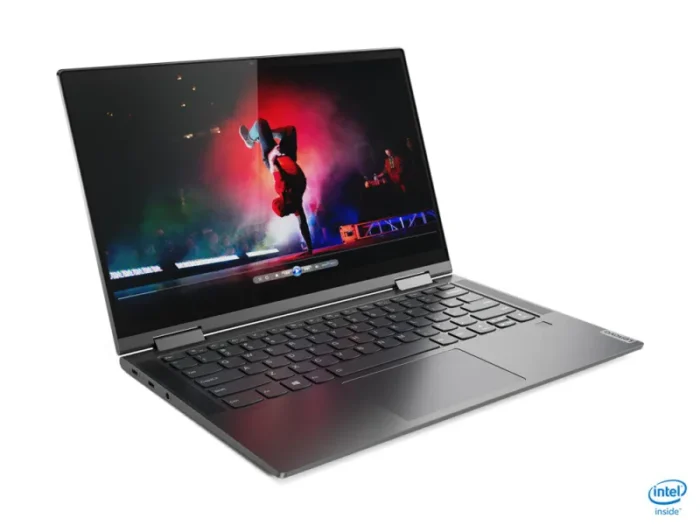

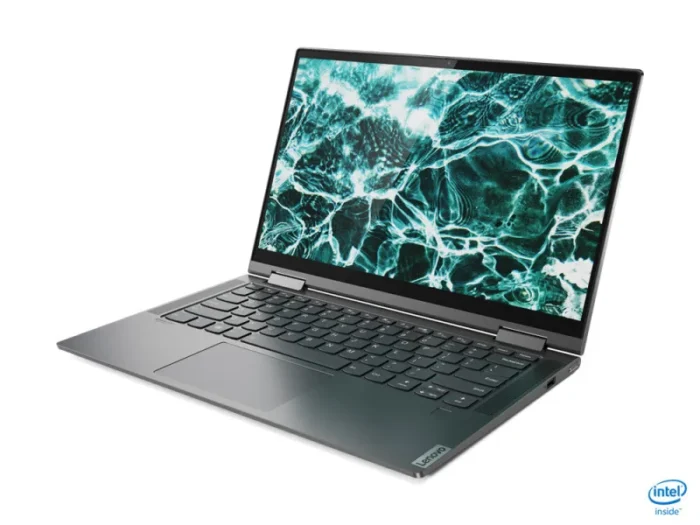

Lenovo Yoga C740-14IML Intel® Core™ i7 i7-10510U Hybrid (2-in-1) 35.6 cm (14″) Touchscreen Full HD 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Home Grey
- Intel Core i7-10510U (4C/8T, 1.8/4.9GHz, 8MB)
- 8GB DDR4-2666
- 512GB SSD M.2 2280 PCIe 3.0×4 NVMe
- Intel UHD Graphics
- Windows 10 Home 64
Push boundaries
Combining sleek design, long-lasting battery life, and smart high-speed processing, the new Yoga C740 (14”) blazes a trail with the latest 10th Gen Intel® Core™ processors. Furthering Yoga’s famous 2-in-1 versatility, the C740 also offers a FHD touchscreen display, a user-facing Dolby Atmos™ speaker system, and webcam privacy shutter for a robust user experience.
| Design |
| Housing material |
Aluminium |
| Form factor |
Convertible (Folder) |
| Colour name |
Iron grey |
| Product colour |
Grey |
| Product type |
Hybrid (2-in-1) |
| Display |
| High Dynamic Range (HDR) technology |
Dolby Vision |
| NTSC coverage (typical) |
72% |
| Dual-screen |
No |
| Display brightness |
300 cd/m² |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Touch technology |
Multi-touch |
| HD type |
Full HD |
| Touchscreen type |
Capacitive |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Maximum number of PCI Express lanes |
16 |
| PCI Express slots version |
3.0 |
| PCI Express configurations |
1×4, 2×2, 1×2+2×1, 4×1 |
| Tjunction |
100 °C |
| Configurable TDP-down |
10 W |
| Configurable TDP-down frequency |
0.8 GHz |
| Configurable TDP-up |
25 W |
| Configurable TDP-up frequency |
2.3 GHz |
| Thermal Design Power (TDP) |
15 W |
| Processor codename |
Comet Lake |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor socket |
BGA 1528 |
| Processor cache |
8 MB |
| System bus rate |
4 GT/s |
| Processor frequency |
1.8 GHz |
| Processor boost frequency |
4.9 GHz |
| Processor threads |
8 |
| Processor cores |
4 |
| Processor model |
i7-10510U |
| Processor generation |
10th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
8 GB |
| Memory clock speed |
2666 MHz |
| Memory form factor |
On-board |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card ID |
0x9B41 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card base frequency |
300 MHz |
| Maximum on-board graphics card memory |
32 GB |
| Number of execution units |
24 |
| On-board graphics card dynamic frequency (max) |
1150 MHz |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Audio decoders |
Dolby Atmos |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Camera |
| Auto focus |
No |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera HD type |
HD |
| Front camera signal format |
720p |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Performance |
| Ambient light sensor |
No |
| Accelerometer |
Yes |
| Gyroscope |
No |
| Electronic compass |
No |
| Keyboard |
| Windows keys |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Touchpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel TSX-NI |
No |
| Intel 64 |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
46 x 24 mm |
| Intel® My WiFi Technology (Intel® MWT) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
196449 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Battery |
| Battery life (max) |
13 h |
| Battery capacity |
51 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
65 W |
| Security |
| Password protection type |
Power on, Supervisor, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Smart card reader |
No |
| Fingerprint reader |
Yes |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Height (rear) |
1.69 cm |
| Height (front) |
1.49 cm |
| Depth |
214.6 mm |
| Width |
321.8 mm |
| Weight |
1.4 kg |
| General |
| Product family |
Yoga |
| Product series |
C |
| Packaging content |
| Manual |
Yes |
| AC adapter included |
Yes |
| Other features |
| TV tuner integrated |
No |
| Maximum internal memory (64-bit) |
16 GB |
| 3D |
No |
| LightScribe |
No |
