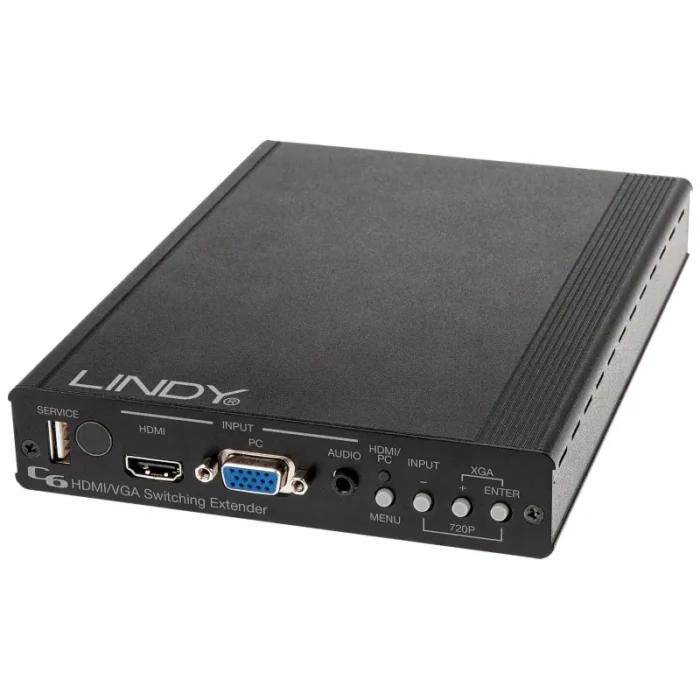

Lindy 100m C6 HDBaseT HDMI/VGA Extender – Transmitter
- Extend HDMI/VGA, IR, Ethernet & RS-232 over a single CAT5e/6/7 Cable when used with a compatible HDBaseT(TM) display or Receiver
- Integrated HDMI/VGA switch with manual or auto switching
- Video scaling for using legacy equipment in High Definition installations
- Includes HDBaseT PoE functionality to remotely power compatible receivers (sold separately)
Extend HDMI/VGA, IR, Ethernet & RS-232 over a single CAT5e/6/7 Cable when used with a compatible HDBaseT(TM) display or Receiver
Integrated HDMI/VGA switch with manual or auto switching
Video scaling for using legacy equipment in High Definition installations
Includes HDBaseT PoE functionality to remotely power compatible receivers (sold separately)
2 Year Warranty
Using HDBaseT(TM) Technology the LINDY C6 HDMI & VGA Switching Extender Transmitter allows you to send HDMI or VGA with Analogue Audio, Ethernet, RS-232, and IR signals up to 100m using a single high quality Cat.6/Cat.7 RJ45 cable to an HDBaseT Receiver or Display/Projector with integrated HDBaseT technology.
Switching between the HDMI and VGA inputs is quick and easy and can be completed by push button, IR remote control, RS-232 command or auto-switching, perfect for integration in to a meeting room, classroom or control centre.
For added convenience and to enable discreet installation of a Receiver unit the Transmitter supports 24V PoH (Power over HDBaseT) allowing a single power supply to be used with the Transmitter to power both units. For best results and especially longer distances, we recommend using solid core/structured cabling.
The integrated video scaler provides complete control over the output video resolution; allowing resolutions from 640×480 (VGA) to 1920×1200 (WUXGA), including 1080p, to be used. In addition the scaler function also allows you to control the Contrast, Brightness, Hue, Saturation and Sharpness of the output image to ensure the best possible picture quality.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Package Contents:
C6 HDMI & VGA Switching Extender Transmitter
24V Power Adapter
C13 Mains Power Cable
IR Extender Cable 1.4m x 2
IR Remote Control
This User Manual
| Features | |
|---|---|
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p |
| HDCP | Yes |
| 3D | Yes |
| Colour depth | 36 bit |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Remote control type | IR |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Maximum resolution | 1920 x 1200 pixels |
| Type | AV transmitter |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Serial interface type | RS-232 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Audio input | Y |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial ports quantity | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) input ports | 1 |
| RJ-45 output ports | 1 |
| RJ-45 input ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 608 g |
| Dimensions (WxDxH) | 145 x 202 x 30 mm |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Manual | Yes |
| Cables included | AC, IR |
| AC adapter included | Yes |
