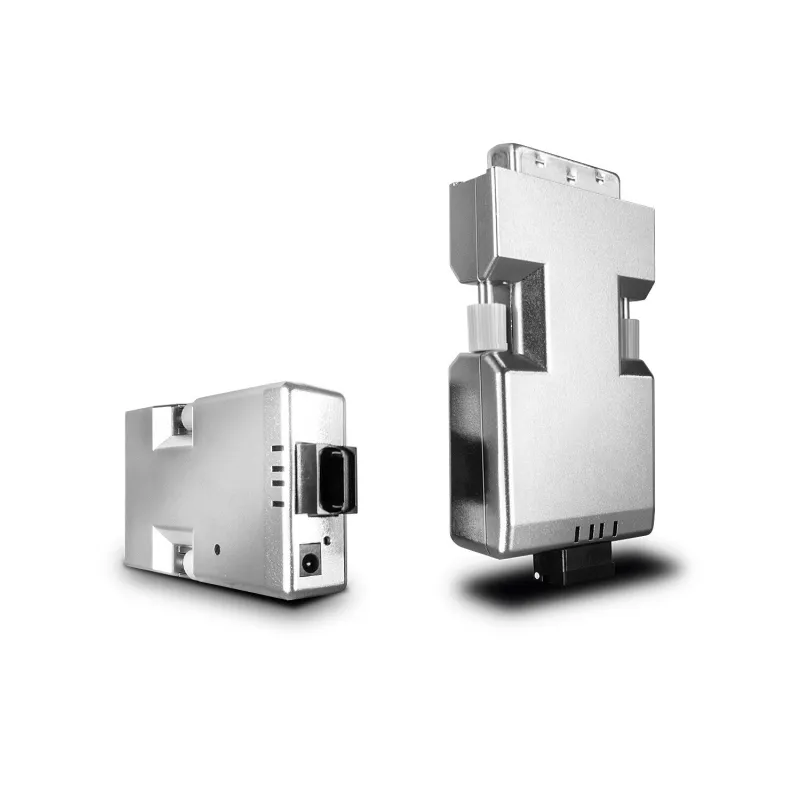

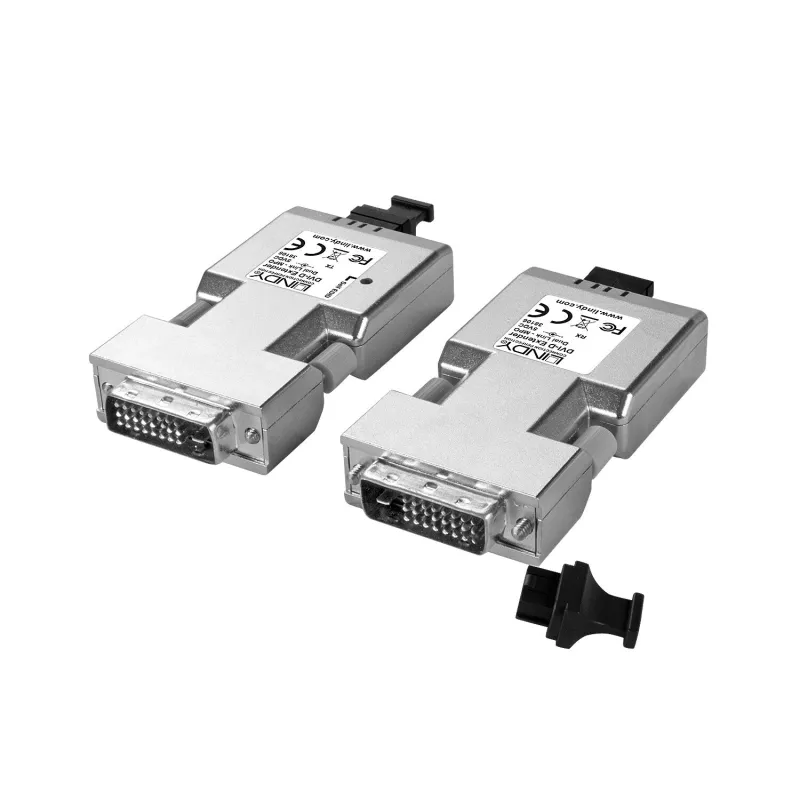

Lindy 500m Fibre Optic DVI-D Dual Link Extender
- Extend DVI-D Dual Link signals up to 500m using a single fibre optic cable (not included)andnbsp;
- Compatible with DVI-D 2.0 specifications including HDTV and HD-Ready displays
- Supports HDTV resolutions up to 2560 x 1600 @ 60Hz / 1600p @ 60 Hz
- Auto and Self learning EDID transmissionandnbsp;
- No HDCP support
- Auto laser cut off if fibre optic cable is broken or DVI-D cable removed
- 2 year warranty
Easy to set up and install this compact Fibre Optic DVI-D Dual Link Extender is a cost effective, high quality solution for sending DVI-D signals up to 500m without any compression or degradation over MPO Multimode cable.
Unlike other solutions, this extender uses just a single fibre cable to reach such great lengths. The system comprises of transmitter and receiver modules that connect directly to the digital source and display via DVI-D. The modules are then connected using a single, MPO fibre optic cable (not included).
Please note – We recommend using 50/125µ or 62.5/125µ MPO multimode fibre cable. Please contact Technical Support for further advice.
| Features | |
|---|---|
| Product colour | Grey |
| LED indicators | Yes |
| Maximum transfer distance | 500 m |
| Cable types supported | Fiber |
| Maximum resolution | 2560 x 1600 pixels |
| Type | AV transmitter & receiver |
| Ports & interfaces | |
|---|---|
| Video in | 1 |
| Video out | 1 |
| DVI input ports | 1 |
| DVI output ports | 1 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 65 °C |
| Weight & dimensions | |
|---|---|
| Transmitter weight | 100 g |
| Transmitter dimensions (WxDxH) | 40 x 80 x 15 mm |
| Receiver weight | 100 g |
| Receiver dimensions (WxDxH) | 40 x 80 x 15 mm |
