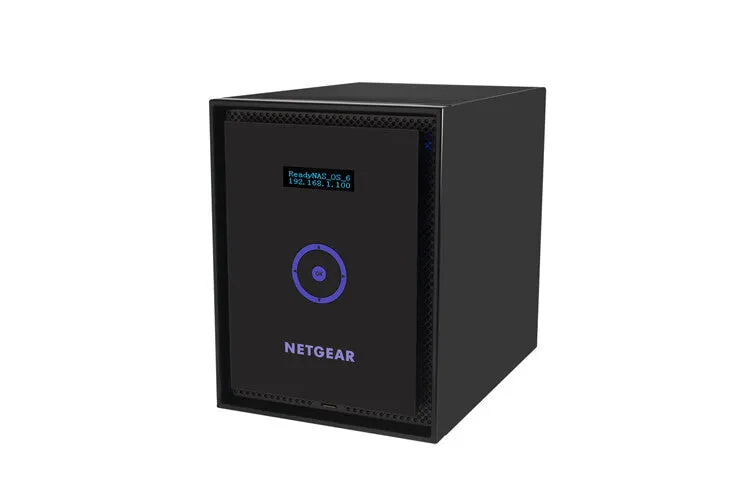

NETGEAR RN716X NAS Mini Tower Intel® Xeon® E3 V2 Family E3-1265LV2 16 GB 0 TB Black
- Home & Home Office NAS Mini Tower Black
- Number of storage drives supported: 6 SSD
- Intel® Xeon® E3 V2 Family E3-1265LV2 2.5 GHz Intel® HD Graphics P4000
- 16
- Ethernet LAN Jumbo frames support iSCSI support Wake-on-LAN ready
- Cooling type: Active LCD
- 200 W
| Storage | |
|---|---|
| Supported file systems | ext3, ext4, FAT32, HFS+, NTFS |
| Hot-swap drive bays | Yes |
| RAID levels | 0, 1, 5, 6, 10 |
| Maximum supported storage capacity | 24 TB |
| Storage drive size | 2.5/3.5″ |
| Storage drive interface | Serial ATA |
| Supported storage drive types | SSD |
| Number of storage drives supported | 6 |
| Total installed storage capacity | 0 TB |
| Storage drives installed | No |
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Maximum internal memory supported by processor | 32 GB |
| On-board graphics card model | Intel® HD Graphics P4000 |
| PCI Express configurations | 1×16+1×4, 1×8+3×4, 2×8+1×4 |
| Processor codename | Ivy Bridge |
| Bus type | DMI |
| System bus rate | 5 GT/s |
| ECC supported by processor | Yes |
| PCI Express slots version | 3.0 |
| Processor cache type | Smart Cache |
| Processor code | SR0PB |
| Processor lithography | -, 22 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 1155 (Socket H2) |
| Stepping | E1 |
| Thermal Design Power (TDP) | 45 W |
| L3 cache | 8 MB |
| Processor cache | 8 MB |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor boost frequency | 3.5 GHz |
| Processor frequency | 2.5 GHz |
| Processor model | E3-1265LV2 |
| Processor family | Intel® Xeon® E3 V2 Family |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum RAM supported | 16 GB |
| Internal memory | 16 GB |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| DHCP server | No |
| DHCP client | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| eSATA ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Graphics | |
|---|---|
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Design | |
|---|---|
| Display type | LCD |
| Built-in display | Yes |
| LED indicators | LAN, PoE |
| Fan diameter | 12 cm |
| Product colour | Black |
| Cooling type | Active |
| Chassis type | Mini Tower |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 54852 h |
| Access Control List (ACL) | Yes |
| Noise level | 28 dB |
| Number of users | 8192 user(s) |
| Backup function | Yes |
| Device class | Home & Home Office |
| Type | NAS |
| Software | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate x64 |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 96 W |
| Number of power supply units | 1 |
| Power supply unit (PSU) capacity | 200 W |
| Power supply location | Built-in |
| Weight & dimensions | |
|---|---|
| Weight | 7.97 kg |
| Height | 259 mm |
| Depth | 287.5 mm |
| Width | 192 mm |
| Processor special features | |
|---|---|
| Memory types supported by processor | DDR3-SDRAM |
| Memory channels supported by processor | Dual |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Insider™ | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Other features | |
|---|---|
| Processor ARK ID | 65728 |
| Certification | – FCC B, CE, VCCI |
| Compliance certificates | RoHS |
