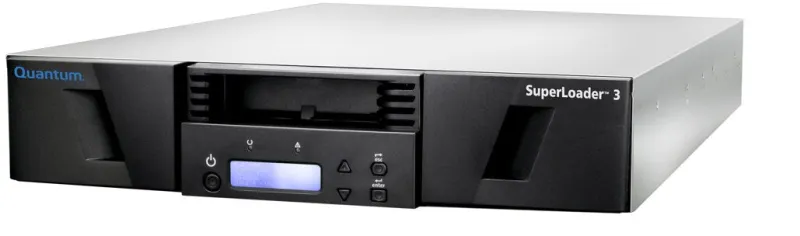

Quantum SuperLoader 3 LTO-7HH Storage auto loader & library Tape Cartridge 96 GB
- 1x LTO7 Tape Drive
- 8 Tape Slots/1 Magazine = 48TB Native/ 144TB Compressed Capacity
- Upgradeable to 16 Tape Slots/2 Magazines – Total Capacity = 96TB Native 288TB Compressed
- Bar Code Reader – For ease of use
- DATASTOR Deduplication Software (reduces data by up to 20X) Included at no extra cost
- 3 year Rapid Exchange Warranty at no extra cost (Upgrades Available)
- LTO7 is backwards compatible and can read LTO7 LTO6 & LTO5 Tapes, It can also Write to LTO7 & LTO6 Tapes
LTO-7 SuperLoader3 with 3 Year Rapid Exchange Warranty
LTO-7 is the ideal solution for archive and long-term data retention due to its Capacity, fast throughput rates, and security features (encryption and WORM). For simplicity and reliable backups, Quantum SuperLoader 3 provides the most value for your money. And whether you need to manage increasing amounts of data, keep up with stringent compliance regulations, or implement a new application, SuperLoader 3 saves you money because it works within your existing infrastructure.
LTO technology has the added benefit of of being removable – thus giving you an all important air gap between your back up data and your online systems – which help to protect your data against RANSOMWARE
Complete Solution with Backup Software and Deduplication Includes DATASTOR Shield backup
software; reduces data by 20X. Up to 720 TB* of capacity with standard compression; up to 5,760 TB of capacity with DATASTOR Shield deduplication.
Plus, it comes with an exclusive package of advanced features, including StorageCare® Guardian, remote management, a barcode reader and labels, a mounting kit, and cabling at no additional cost.
With SuperLoader 3, it’s about simplicity, reliability, and affordability all in one place.
| Performance | |
|---|---|
| Bundled software | DATASTOR – Deduplications Software with deduplication to provide a complete backup solution that can reduce data storage by up to 20X |
| Compatible operating systems | WindowsMac |
| Mean time between failures (MTBF) | 1500000 h |
| Number of slots (max) | 8 |
| Security algorithms | AES |
| Number of slots (min) | 8 |
| Product colour | Black |
| Web-based management | Yes |
| Storage media types supported | LTO-5, LTO-5FH, LTO-5HH, LTO-6, LTO-6HH, LTO-7, LTO-7HH, Ultrium 6 |
| Standard interfaces | Serial Attached SCSI (SAS) |
| Form factor | 2U |
| Data storage type | LTO |
| Interface | Serial Attached SCSI (SAS) |
| Media type | Tape Cartridge |
| Product type | Storage auto loader & library |
| Storage | |
|---|---|
| Compressed capacity | 240 GB |
| Native capacity | 96 GB |
| Data transmission | |
|---|---|
| Data transfer rate | 6 Gbit/s |
| Backup rate native performance | 1080 GB/h |
| Backup rate compressed performance | 2700 GB/h |
| Power | |
|---|---|
| Power requirements | 90 – 256 VAC |
| Weight & dimensions | |
|---|---|
| Weight | 14.1 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Non-operating altitude | -153 – 12192 m |
| Operating altitude | -153 – 3048 m |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | 10 – 35 °C |
| Other features | |
|---|---|
| Cartridge holder | Yes |
| Warranty period | 3 year(s) |
| Dimensions (WxDxH) | 424.2 x 698.5 x 86.6 mm |
| Networking features | 10/100baseT Ethernet |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84719000 |
