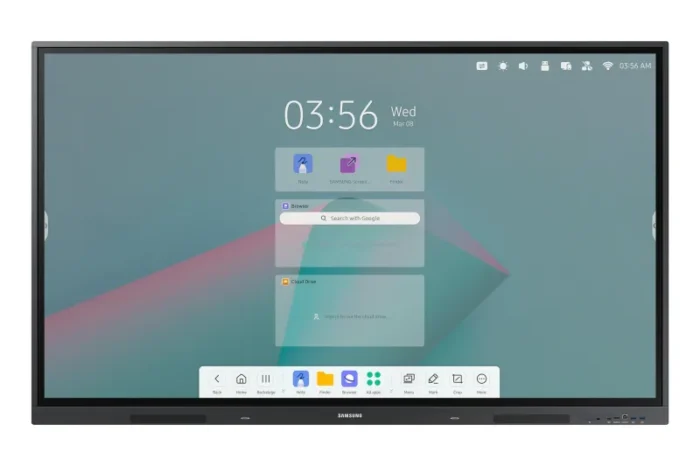

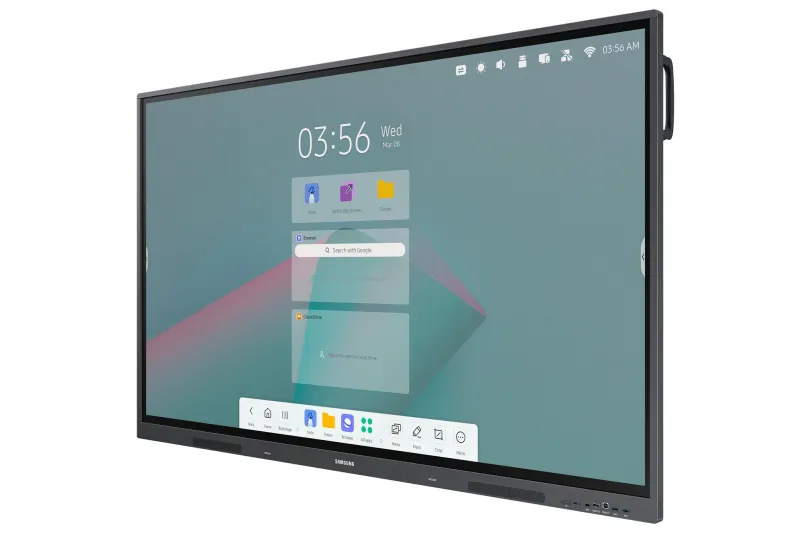

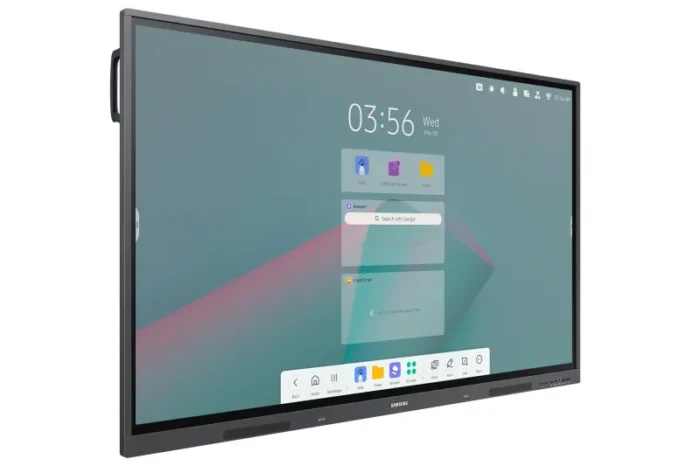

Samsung WA86C interactive whiteboard 2.18 m (86″) 3840 x 2160 pixels Touchscreen Black
- Touchscreen 2.18 m (86″) IPS Black
- 4K Ultra HD 3840 x 2160 pixels
- 400 cd/m² 1200:1 8 ms
- Bluetooth Ethernet LAN
- VESA mounting 800 x 600 mm
- 486 W
| Display | |
|---|---|
| Haze rate | 25% |
| Maximum pixel clock | 77 MHz |
| Colour gamut | 72% |
| Pixel pitch | 493.5 x 493.5 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Touchscreen type | Infrared |
| Touchscreen | Yes |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| Display diagonal | 2.18 m (86″) |
| Computer system | |
|---|---|
| Maximum internal memory | 64 GB |
| Operating system version | 11 |
| Operating system installed | Android |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| IR input port | Yes |
| Video out | Yes |
| Audio output | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDCP version | 2.1 |
| HDCP | Yes |
| Ergonomics | |
|---|---|
| Certification | Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 jQuery22003092628009951718_1715947977692 ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 J55032 , VCCI-CISPR32 JIS C61000-3-2 GB9254-2021 GB17625.1-2012 CNS13438 (ITE EMI) Class A /? AS/NZS? CISPR 32 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 |
| Wall mountable | Yes |
| Panel mounting interface | 800 x 600 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Operating hours (hours/days) | 12/7 |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 486 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Bezel width (L/T, R/B) | 16.4mm(U), 16.4mm(L/R), 44.9mm(B) |
| Weight | 56.5 kg |
| Height | 1160 mm |
| Depth | 99 mm |
| Width | 1957 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 74.3 kg |
| Package height | 1283 mm |
| Package depth | 225 mm |
| Package width | 2110 mm |
| General | |
|---|---|
| Product family | WAC series |
