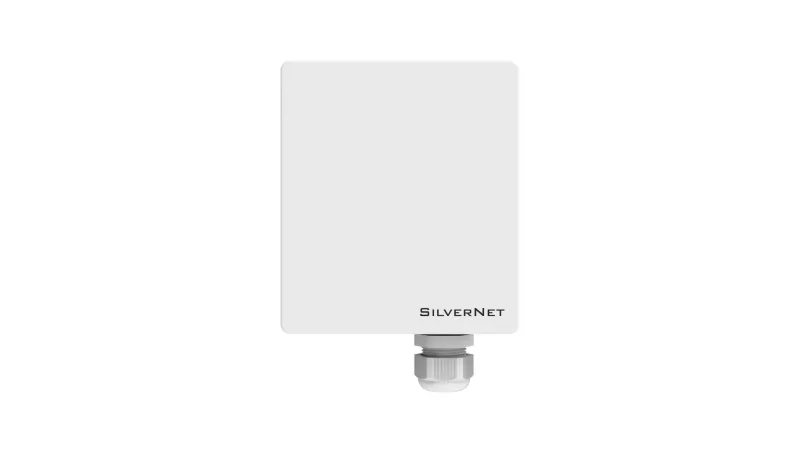

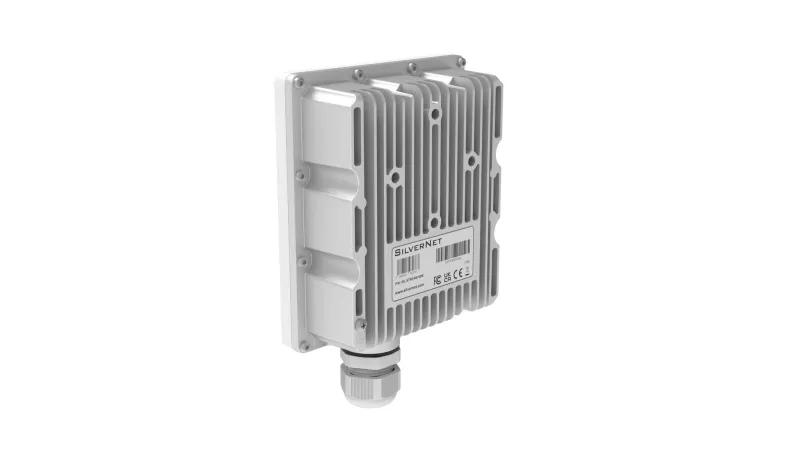

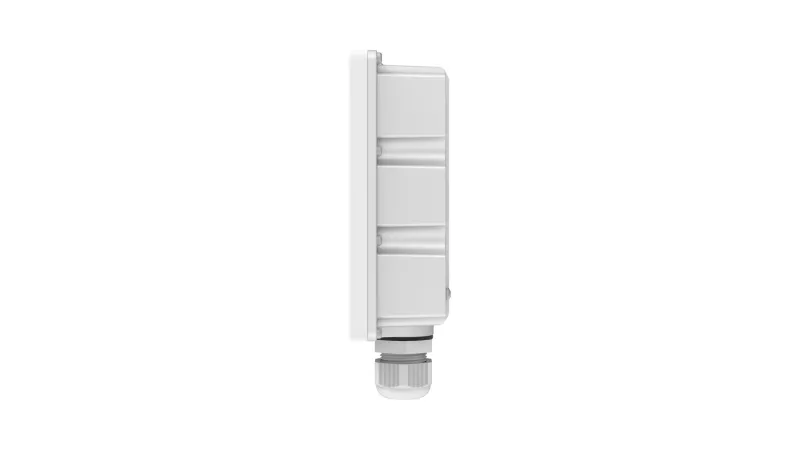

SilverNet SIL STREAM 60M bridge/repeater Network bridge 2500 Mbit/s White
- Up to 2.5Gbps Full Duplex Aggregate Throughput
- Multipoint connectivity for up to 25 clients
- 6 Channels or 12 Channels supported in the 57-71 GHz Band
- Up to 16QAM Modulation
- Over-The-Air (OTA) Security, AES+ 256 Encryption
- High Gain Antennae with Beamforming Technology
- IP67 Rated
- High power 40 EIRP
- Speed test
- Supports QoS with 4 Service Classes
- Supports Layer 2 Forwarding including:
- VLAN Transparent Transmission
- Management VLAN
- 2 Year Warranty as Standard
The SIL STREAM 60M can connect to 25 clients up to 500M within its 120° x 50° antenna beamwidth. For Multipoint applications, the STREAM 605 can function as a client to the STREAM 60M.
The STREAM 60M has throughput speeds of up to 2.5Gbps Full Duplex, 256+ AES and 6 or 12 (half size) transmission channels, making it ideal for gigabit connections across last-mile access routes in congested areas.
| Data transmission | |
|---|---|
| Supported data transfer rates | 10, 100, 1000, 2500 |
| Maximum transfer distance | 500 m |
| Maximum data transfer rate | 2500 Mbit/s |
| Antenna | |
|---|---|
| Antennas quantity | 64 |
| Antenna gain level (max) | 20 dBi |
| Antenna type | 1×1 |
| Antenna design | Internal |
| Wireless LAN features | |
|---|---|
| Outdoor range | 500m |
| Output power (dBm) | 40 EIRP |
| Modulation | 16-QAM, BPSK, QPSK |
| Channels quantity | 12 channels |
| Frequency band | 57-71 GHz |
| Network | |
|---|---|
| Static IP | Yes |
| Dynamic IP | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN interface type | Multi-Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
|---|---|
| Security features | Over-The-Air Security |
| Security algorithms | 256-bit AES |
| Management features | |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Web-based management | Yes |
| Management protocols | VLAN, MIB, SNMP V2 / V3 |
| Features | |
|---|---|
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Flow control support | Yes |
| International Protection (IP) code | IP67 |
| Automatic Transmit Power Control (ATPC) | Yes |
| Power LED | Yes |
| LED indicators | LAN, Power, Signal strength, WLAN |
| Product colour | White |
| Mounting type | Pole/Wall |
| Product type | Network bridge |
| Power | |
|---|---|
| DC output current | 0.5 A |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 17 W |
| Power consumption (max) | 41 W |
| DC input voltage | 24-52 V |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -20 – 60 °C |
| Certificates | |
|---|---|
| Certification | FCCICCEVCCITELECRCM |
| Weight & dimensions | |
|---|---|
| Weight | 600 g |
| Height | 125 mm |
| Depth | 44 mm |
| Width | 110 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Antenna included | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |
| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Packaging data | |
|---|---|
| Package width | 130 mm |
| Package depth | 300 mm |
| Package height | 100 mm |
| Package weight | 1.55 kg |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
