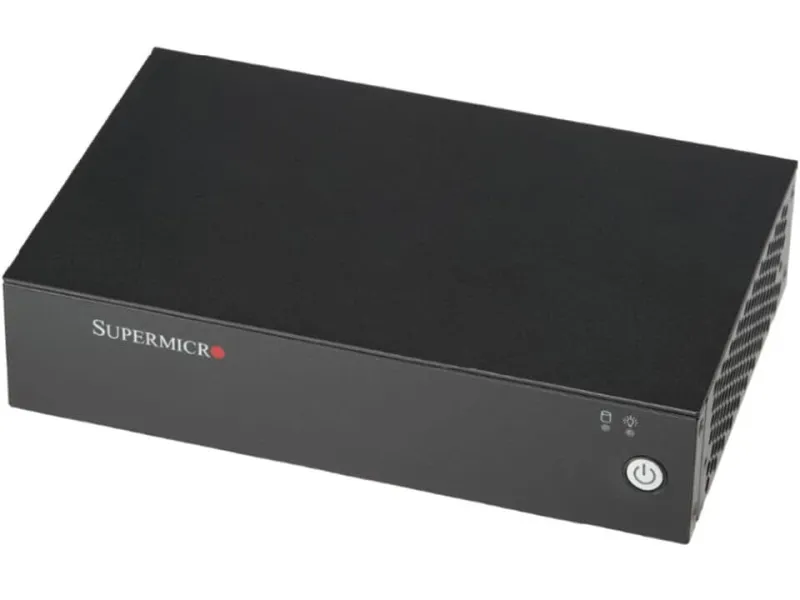

Supermicro SYS-E102-13R-H embedded computer 1.9 GHz Intel® Core™ i7
- Intel® Intel® Raptor Lake-P I7-1370PE 14C/20T Processor
- Dual Channel DDR5 4800MHz SO-DIMM, up to 64GB
- 2x 2.5GbE LAN Ports
- 1x 2.5” 7mm Storage Drive
- 1x M.2 M-Key 2242/2280 (PCIe x4), 1x M.2 E Key 2230, 1x M.2 B-key 2242/3042/2280
- 4x USB 3.2 Ports Gen2, 2x HDMI Port, 2x DisplayPort (2x USB type-C for USB & DP)
| Processor |
| Processor threads |
20 |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
14 |
| Processor model |
i7-1370PE |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Processor frequency |
1.9 GHz |
| Memory |
| Supported memory types |
DDR5-SDRAM |
| Non-ECC |
Yes |
| Memory clock speed |
4800 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
64 GB |
| Graphics |
| Discrete graphics card |
No |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board graphics card |
Yes |
| Network |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Performance |
| Fanless |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| BIOS type |
UEFI AMI |
| Product colour |
Black |
| Power |
| Power supply input frequency |
47-63 Hz |
| Power supply input voltage |
100 – 240 V |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Package weight |
2 kg |
| Package height |
130 mm |
| Package depth |
279 mm |
| Package width |
300 mm |
| Weight |
1.2 kg |
| Height |
44 mm |
| Depth |
120 mm |
| Width |
190 mm |
