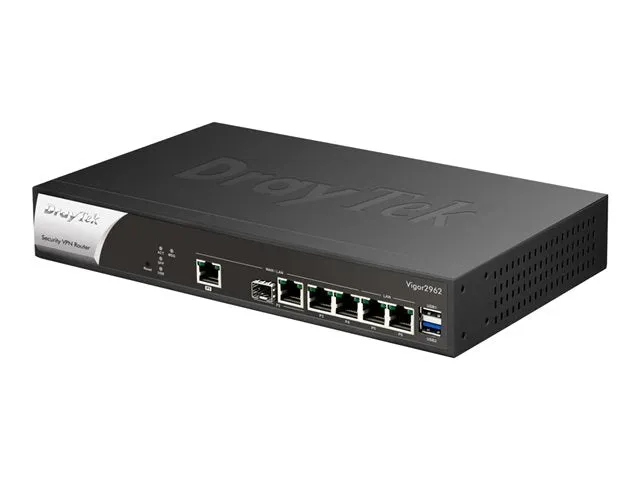

TieDex UK Draytek Vigor 2962 – router – desktop, rack-mountable
Draytek Vigor 2962 – Router 4-port switch – 1GbE, 2.5GbE – WAN ports: 2 – rack-mountable
Basic Specifications
- Manufacturer’s Part Number
- V2962-K
- EAN
- 4710484742001
- Weight
- 1.3 kg
- Product Description
- Draytek Vigor 2962 – router – desktop, rack-mountable
- Model
- Draytek Vigor 2962
- Dimensions (WxDxH)
- 27.3 cm x 17.1 cm x 4.5 cm
- Localisation
- United Kingdom, Ireland
- Features
- NAT support, load balancing, Syslog support, ALG support, port mirroring, E-mail alert, IPv6 support, VPN passthrough, High Availability, URL filtering, firmware upgradable, LAN-to-LAN bridging, ACL support, QoS, Data prioritization (Qos) for VoIP applications, IPSec NAT-T, DHCP server, SMS alert, bandwidth control, IPv4 support, DNS server, port triggering, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, 802.1x authentication, ToS, Web Filtering, DoS protection, L2TP over IPSec, DMZ support, port-based VLAN, OTP, Bandwidth Limiter, multiple PVC support, broadcast threshold, DNS filtering, DNSSEC support, PPP, PIN code authentication, DSCP based QoS, Brute Force Protection
- Power
- AC 120/230 V
- Device Type
- Router – 4-port switch (integrated)
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
- Capacity
- Concurrent VPN tunnels: 200 ¦ NAT sessions: 300000 ¦ Concurrent SSL VPN tunnels: 200 ¦ 802.1q virtual interfaces (VLANs): 50
- Performance
- NAT throughput with hardware acceleration: 2.2 Gbps ¦ VPN throughput (256-bit AES IPSec): 900 Mbps ¦ VPN throughput (SSL): 650 Mbps
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
- Enclosure Type
- Desktop, rack-mountable
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, GRE, RIPng
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, DDNS, DHCPv6, RTSP
- WAN Ports Qty
- 2
- VoIP Protocols
- H.323, SIP
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, TR-069
- Digital Signaling Protocol
- H.323, SIP
General
- Device Type
- Router – 4-port switch (integrated)
- Enclosure Type
- Desktop, rack-mountable
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
- Performance
- NAT throughput with hardware acceleration: 2.2 Gbps ¦ VPN throughput (256-bit AES IPSec): 900 Mbps ¦ VPN throughput (SSL): 650 Mbps
- Capacity
- Concurrent VPN tunnels: 200 ¦ NAT sessions: 300000 ¦ Concurrent SSL VPN tunnels: 200 ¦ 802.1q virtual interfaces (VLANs): 50
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, DDNS, DHCPv6, RTSP
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, GRE, RIPng
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, TR-069
- Encryption Algorithm
- DES, Triple DES, MD5, MPPE, AES, SSL, SHA-1, IKEv2, SHA-256
- Authentication Method
- RADIUS, X.509 certificates, TACACS+, LDAP, XAUTH authentication
- Features
- NAT support, load balancing, Syslog support, ALG support, port mirroring, E-mail alert, IPv6 support, VPN passthrough, High Availability, URL filtering, firmware upgradable, LAN-to-LAN bridging, ACL support, QoS, Data prioritization (Qos) for VoIP applications, IPSec NAT-T, DHCP server, SMS alert, bandwidth control, IPv4 support, DNS server, port triggering, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, 802.1x authentication, ToS, Web Filtering, DoS protection, L2TP over IPSec, DMZ support, port-based VLAN, OTP, Bandwidth Limiter, multiple PVC support, broadcast threshold, DNS filtering, DNSSEC support, PPP, PIN code authentication, DSCP based QoS, Brute Force Protection
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
- Status Indicators
- Active, USB, SFP
Communications
- Digital Signaling Protocol
- H.323, SIP
Dimensions & Weight
- Width
- 27.3 cm
- Depth
- 17.1 cm
- Height
- 4.5 cm
- Weight
- 1.3 kg
Miscellaneous
- Rack Mounting Kit
- Included
- Localisation
- United Kingdom, Ireland
Expansion / Connectivity
- Interfaces
- WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN / LAN: 1 x 2.5GBase-T ¦ WAN / LAN: 1 x 1000Base-X – RJ-45/SFP ¦ USB 2.0: 1 x ¦ USB 3.0: 1 x
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 15 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
IP Telephony
- VoIP Protocols
- H.323, SIP
