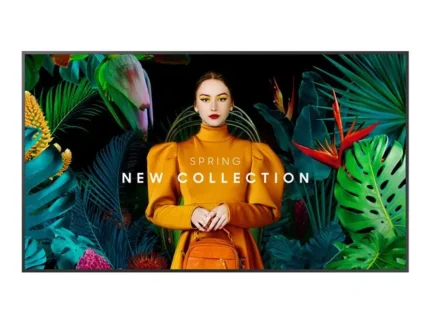

TieDex UK Samsung QB85C-N QBC Series – 85″ LED-backlit LCD display – Crystal UHD – 4K – for digital signage
Samsung QB85C-N – 85″ Diagonal Class QBC Series LED-backlit LCD display – Crystal UHD – digital signage – Tizen OS – 4K UHD (2160p) 3840 x 2160
Basic Specifications
- Manufacturer’s Part Number
- LH85QBCNBGCXEN
- EAN
- 8806094973082
- Product Type
- LED-backlit LCD flat panel display – Crystal UHD
- Product Description
- Samsung QB85C-N QBC Series – 85″ LED-backlit LCD display – Crystal UHD – 4K – for digital signage
- HDMI Ports Qty
- 3 ports
- LCD Backlight Technology
- LED backlight
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 231 Watt
- Model
- Samsung QB85C-N
- Dimensions (WxDxH) – without stand
- 190.43 cm x 2.85 cm x 108.53 cm
- Display Format
- 4K UHD (2160p)
- USB
- 2 ports
- Diagonal Class
- 85″
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Environmental Standards
- ENERGY STAR Qualified, EPEAT Bronze
- Voltage
- AC 100-240 V (50/60 Hz)
- Technology
- VA
- TV Tuner
- No tuner
- Weight
- 41.9 kg
- Display Resolution
- 4K Ultra HD (2160p)
- Connectivity
- LAN
- Platform
- Tizen OS
- Picture Enhancements
- Mega Dynamic Contrast Ratio, Dynamic Crystal Color, Intelligent UHD upscaling, 72% Colour Gamut NTSC
- Storage Capacity
- 8 GB
- Commercial Features
- SMART Signage Platform, Samsung VXT CMS, Home UI
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 80% (non-condensing)
Stands & Mounts
- Stand
- Optional
- Flat Panel Mount Interface
- 600 x 400 mm
- VESA Compatibility
- Yes
Media Player
- USB Port
- Yes
- USB Ports Qty
- 2
- Configuration
- 8 GB
Connections
- Connector Type
- 3 x HDMI input ¦ 2 x USB ¦ RS-232 input ¦ RS-232 output ¦ Audio line-out ¦ LAN input ¦ Infrared input
Display
- LCD Display Technology
- VA
- Pixel Pitch
- 0.487 mm
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- LCD Backlight Technology
- LED backlight
- Coating
- 2% haze
- Image Contrast Ratio
- 4000:1
- Brightness
- 350 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 10 ms
- Commercial Features
- SMART Signage Platform, Samsung VXT CMS, Home UI
- Operation Hours / Days
- 16 / 7
- Features
- Smart Calibration
General
- Product Type
- LED-backlit LCD flat panel display – Crystal UHD
- Power Consumption Operational
- 231 Watt
- Diagonal Class
- 85″
- Commercial Use
- Yes – digital signage
- Series
- QBC Series
- Platform
- Tizen OS
- Operating System
- Tizen OS 7.0
- Video Processor
- Crystal 4K
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- Modes
- Director Mode, DICOM Simulation Mode
- Picture Enhancements
- Mega Dynamic Contrast Ratio, Dynamic Crystal Color, Intelligent UHD upscaling, 72% Colour Gamut NTSC
- Design
- Even Bezel Design, Ultra Slim
- Dimensions
- Without stand
- Width
- 190.43 cm
- Depth
- 2.85 cm
- Height
- 108.53 cm
- Weight
- 41.9 kg
Miscellaneous
- Compliant Standards
- EMC Class A, HDCP 2.2, Safety 60950-1, Safety 62368-1
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Sleep
- 0.5 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 207.7 cm
- Depth (Shipping)
- 21 cm
- Height (Shipping)
- 122.2 cm
- Weight (Shipping)
- 53.9 kg
Network & Internet Multimedia
- Connectivity
- LAN
- LAN Protocol
- Ethernet
Sustainability Information
- EPEAT Compliant
- EPEAT Bronze
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 8.0
