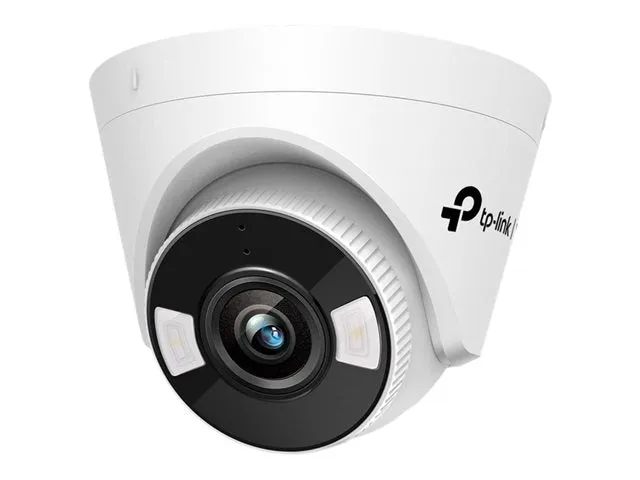

TieDex UK TP-Link VIGI C440 V1 – network surveillance camera – turret
TP-Link VIGI C440 V1 – Network surveillance camera – pan / tilt – turret – colour (Day&Night) – 2560 x 1440 – M12 mount – fixed focal – audio – LAN 10/100 – H.264, H.265, H.265+, H.264+ – DC 12 V
Basic Specifications
- Manufacturer’s Part Number
- VIGI C440(2.8mm)
- EAN
- 4897098688687
- Manufacturer Warranty
- 3-year warranty
- Product Description
- TP-Link VIGI C440 V1 – network surveillance camera – turret
- Model
- TP-Link VIGI C440 V1
- Dimensions (WxDxH)
- 12.3 cm x 8.4 cm x 12.3 cm
- Camera
- Colour – Day&Night
- Features
- Backlight Compensation (BLC), IR filter, sharpness control, saturation control, brightness control, contrast control, image mirror, ONVIF support, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), Live View Control, programmable white balance, Camera Tampering Detection, Smart IR, reset button, password protection, 2-way voice communication, Region of Interest (ROI), exposure control, plastic housing, digest authentication, Line Crossing Detection, IP address filtering, 3D digital noise reduction (DNR), HTTPs encryption, human detection, Smart Detection, instant notification, object enter area detection, MiMo WiFi connectivity, Active Defense, password reset via e-mail, 2 video streams, video tampering detection
- Device Type
- Network surveillance camera – pan / tilt – turret
- Connectivity Technology
- Wired
- Voltage
- DC 12 V
- Focus Adjustment
- Focus free
- Interfaces
- Ethernet 10Base-T/100Base-TX
- Max Resolution
- 2560 x 1440
- Frame Rate (max)
- 30 frames per second
- Audio
- Yes: built-in speaker, built-in microphone
- Optical Sensor Type
- CMOS – 1/3″
- Environmental Parameters (operating)
- -30 °C – 60 °C
- Motion Detection
- Yes
- Tilting Range (degree)
- 0 to 85
- Panning Range (degree)
- 0 to 360
- Focal Length
- 2.8 mm
- Focal Length Control
- Fixed focal
- Lens Iris
- F/1.6
- Lens Mounting
- M12 mount
General
- Device Type
- Network surveillance camera
- Audio Support
- Yes: built-in speaker, built-in microphone
- Form Factor
- Turret
- Connectivity Technology
- Wired
- Width
- 12.3 cm
- Depth
- 8.4 cm
- Height
- 12.3 cm
Miscellaneous
- Included Accessories
- Screws, mounting template, anchors
- Compliant Standards
- VCCI, BSMI, RoHS, RCM, IEEE 802.3af, IEEE 802.3at
Camera
- Type
- Colour – Day&Night – pan / tilt
- Digital Video Format
- H.264, H.265, H.265+, H.264+
- Max Digital Video Resolution
- 2560 x 1440
- Motion Detection
- Yes
- Infrared LEDs
- Yes
- Infrared Distance
- 30 m
- Digital Video Capture Resolution
- 640 x 480, 320 x 240, 352 x 288, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2048 x 1280
- Frame Rate (max)
- 30 frames per second
- Features
- Backlight Compensation (BLC), IR filter, sharpness control, saturation control, brightness control, contrast control, image mirror, ONVIF support, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), Live View Control, programmable white balance, Camera Tampering Detection, Smart IR, reset button, password protection, 2-way voice communication, Region of Interest (ROI), exposure control, plastic housing, digest authentication, Line Crossing Detection, IP address filtering, 3D digital noise reduction (DNR), HTTPs encryption, human detection, Smart Detection, instant notification, object enter area detection, MiMo WiFi connectivity, Active Defense, password reset via e-mail, 2 video streams, video tampering detection
Manufacturer Warranty
- Service & Support
- Limited warranty – 3 years
Expansion / Connectivity
- Ports
- LAN – RJ-45
- Supported Memory Cards
- SD Memory Card
Power
- Power Requirements
- DC 12 V
Environmental Parameters
- Min Operating Temperature
- -30 °C
- Max Operating Temperature
- 60 °C
Lens Construction
- Type
- M12 mount – fixed focal
- Focal Length
- 2.8 mm
- Lens Iris
- F/1.6
- Horizontal Field of View (degree)
- 102
- Vertical Field of View (degree)
- 55
- Diagonal Field of View (degree)
- 122
Image Sensor
- Type
- CMOS 1/3″
Interfaces
- Network Interface
- Ethernet 10Base-T/100Base-TX
- Network Protocols
- DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SSL
Tilting
- Range (degree)
- 0 to 85
Panning
- Range (degree)
- 0 to 360
