TP-Link VIGI 8 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed
- 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access
- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience
- Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management
Security Never Shuts Down

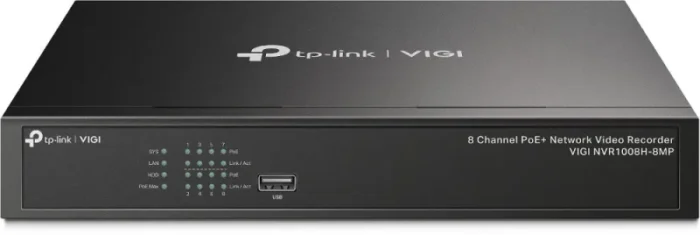

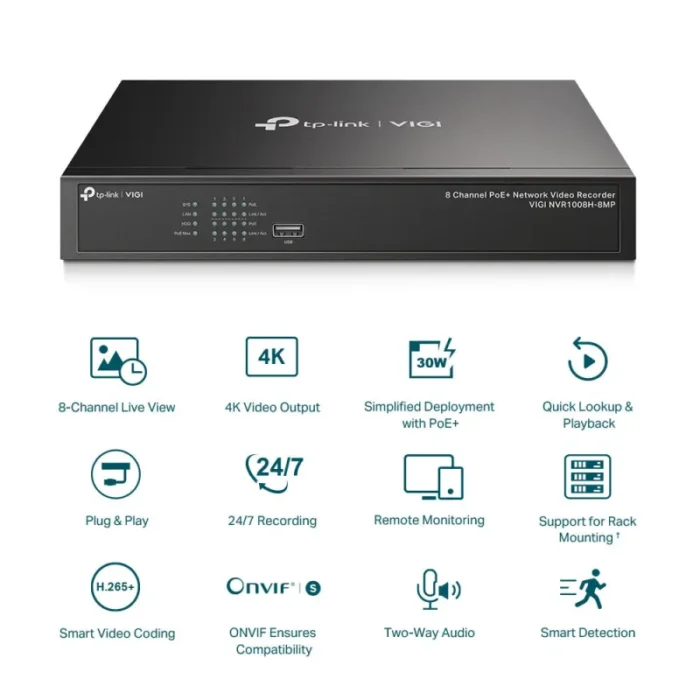

VIGI NVR1008H-8MP 8 Channel PoE+ Network Video Recorder
Every angle all on one screen.
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle.
Dedicated 8 PoE+ ports (113 W budget) for simplified IP camera deployment.

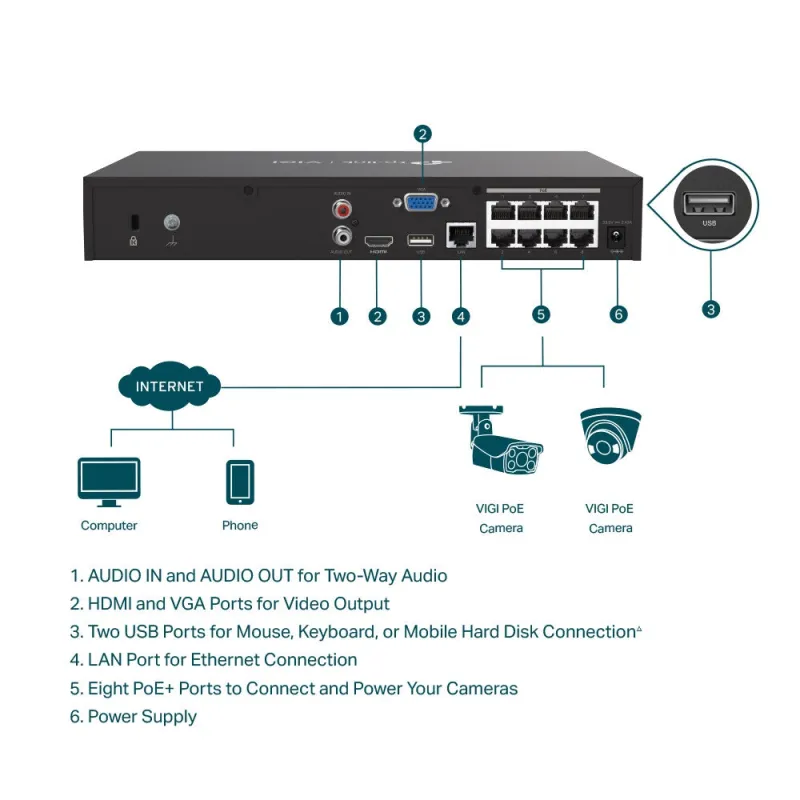

Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing footage is faster than ever.
8-Channel Simultaneous Playback
Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.
Keep an eye on things even when you are on the move.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Flexible installation gives you more convenience.
Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk.
Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance | |
|---|---|
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Resolution at capture speed | 1280×720@60fps, 1920×1080@60fps, 3840×2160@30fps |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840×2160,1920×1080, 1680×1050, 1440×900, 1280×1024, 1024×768, 1280×720 |
| Video recording modes | 720p, 1080p, 2160p |
| Alarm output channels | 1 |
| Alarm input channels | 8 |
| Video input channels | 8 channels |
| Wireless LAN features | |
|---|---|
| Wi-Fi | No |
| Hard drive | |
|---|---|
| HDD interface | SATA |
| Maximum storage capacity | 10 TB |
| HDD capacity | 0 GB |
| Ports & interfaces | |
|---|---|
| Supported network protocols | TCP/IP, DHCP, DNS, NTP, UPnP |
| Audio RCA outputs | 1 |
| Audio RCA inputs | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Output current | 2.43 A |
| Total Power over Ethernet (PoE) budget | 119 W |
| Output voltage | 53.5 V |
| Power consumption (typical) | 4.82 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 – 55 °C |
| General | |
|---|---|
| Product family | VIGI |
| Weight & dimensions | |
|---|---|
| Package weight | 2.1 kg |
| Package height | 80 mm |
| Package depth | 400 mm |
| Package width | 250 mm |
| Height | 44 mm |
| Depth | 180 mm |
| Width | 294 mm |
