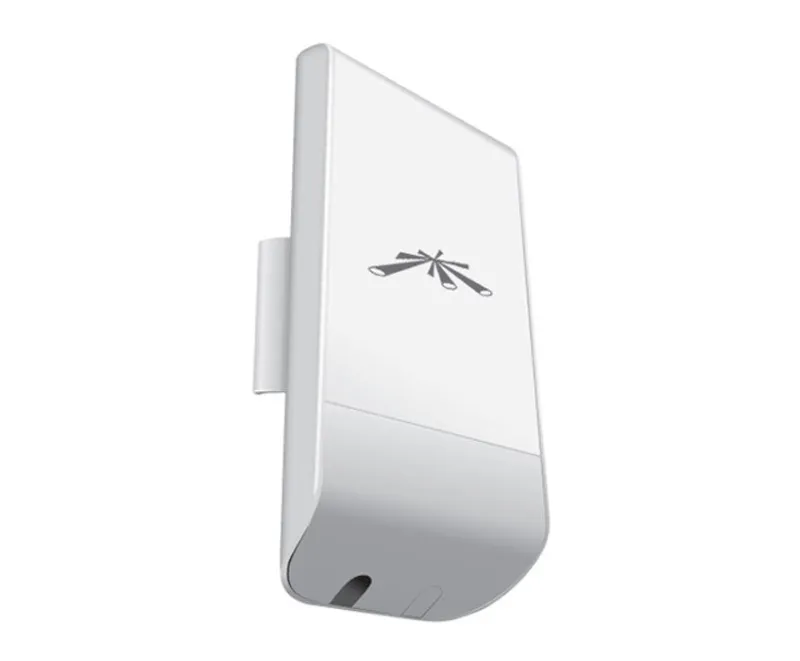

Ubiquiti NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz
- Maximum data transfer rate: 150 Mbit/s
- IEEE 802.3, IEEE 802.3u
- Power over Ethernet (PoE)
Compact CPE Design
The NanoStationM features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting.
Versatile Application Use
The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Window/Wall Mounting Kit
Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
| Features | |
|---|---|
| Maximum outdoor range | 10000 m |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Frequency band | 2.412-2.462 GHz |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Maximum data transfer rate | 150 Mbit/s |
| 2.4 GHz | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 5.5 W |
| Input current | 0.5 A |
| AC input voltage | 24 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Housing material | Plastic |
| Product colour | White |
| Antenna | |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Performance | |
|---|---|
| Flash memory | 8 MB |
| Internal memory | 32 MB |
| Processor architecture | MIPS 24Kc |
| Processor frequency | 400 MHz |
| Processor model | Qualcomm Atheros |
| Built-in processor | Yes |
| Certificates | |
|---|---|
| Certification | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 180 g |
| Height | 163 mm |
| Depth | 31 mm |
| Width | 80 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 – 75 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
