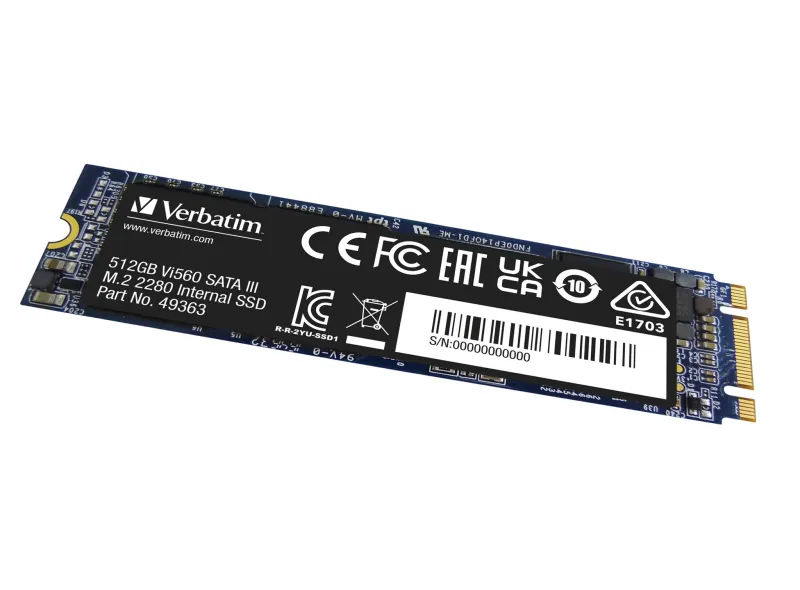

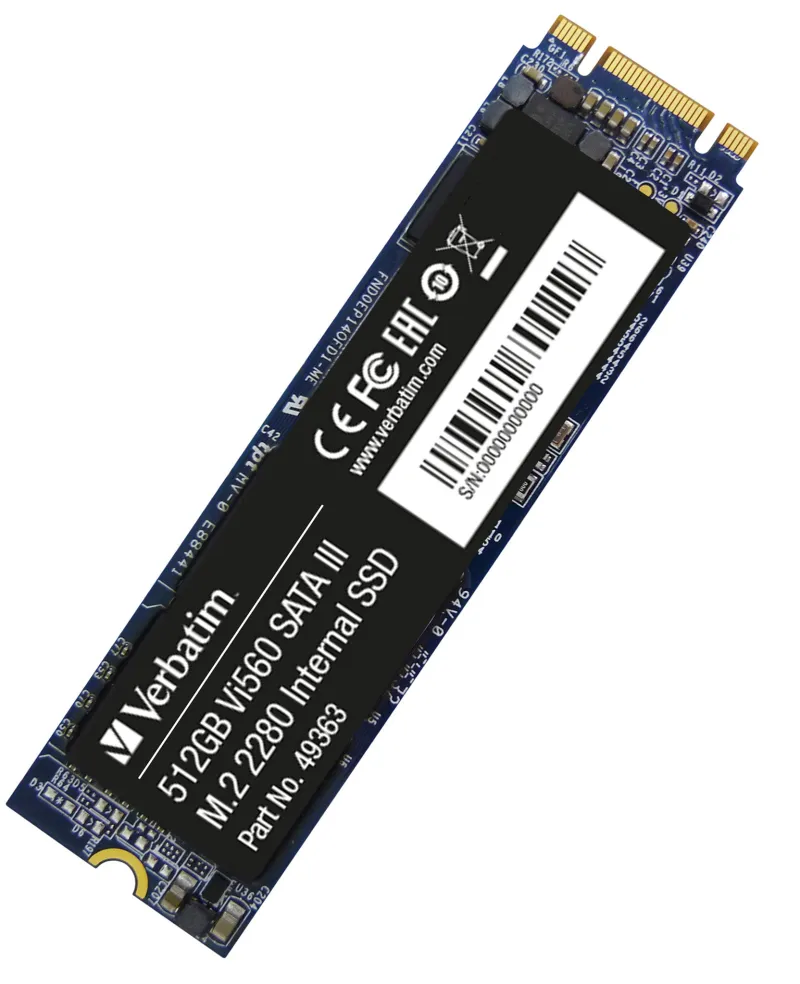

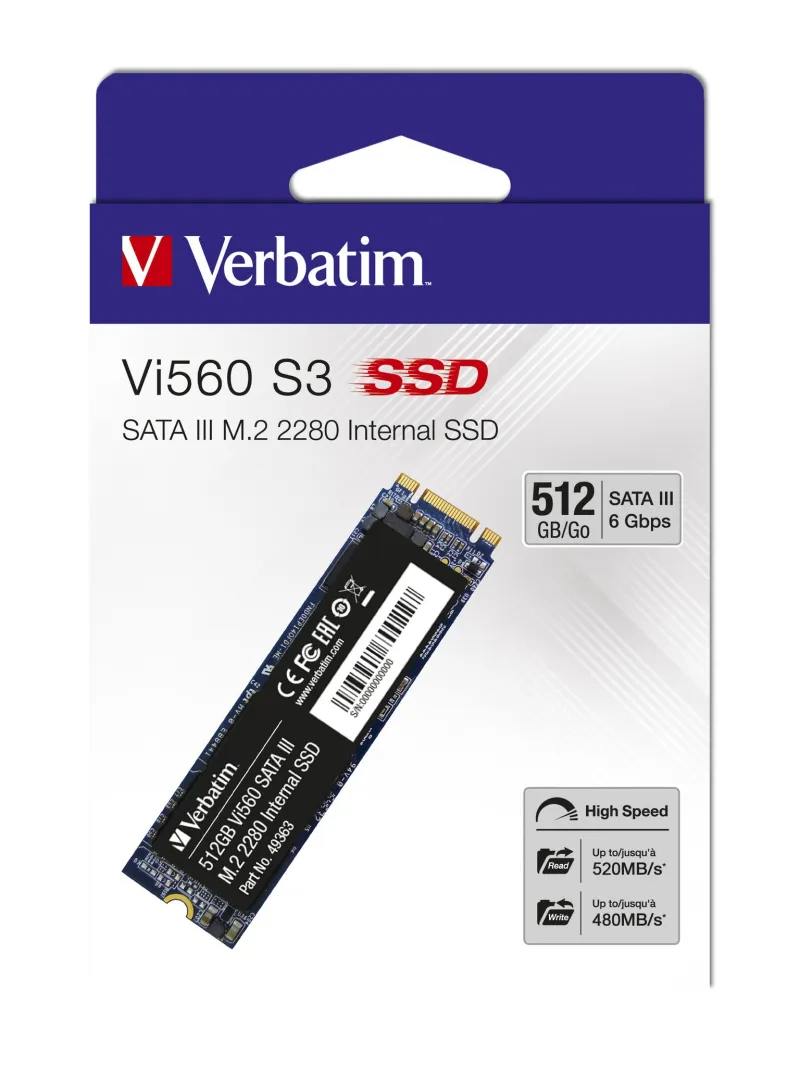

Verbatim Vi560 S3 M.2 SSD 512GB
- SATA III M.2 2280 Internal Solid State Drive
- High reliability with superior flash controller
- Client SSD for laptop upgrades
- Read speeds of up to 560 MB/s
- Boost your laptops performance and launch applications faster
- Low power consumption for extended battery life
- Professional installation recommended
Verbatim SATA III M.2 2280 internal solid state drives can revitalise the performance of your system. Using the latest 3D NAND technology and compact dimensions, they offer the perfect way to upgrade, particular for small or thin form factor devices such as Ultrabooks and Notebooks.
The Vi560 delivers fast system boot-ups, quick application responses, and rapid transfer speeds, with read speeds of up to 560MB/s, which is 20 times faster than a standard hard drive. With an MTBF (mean time before failure) rating of 1.5 million hours and up to 450 TBW (terabytes written), the Vi560 is a high spec SSD that can be relied upon. (Recommended for professional installation.)
| Features | |
|---|---|
| TBW rating | 240 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mean time between failures (MTBF) | 1500000 h |
| M.2 key ID | B+M |
| Random write (4KB) | 80400 IOPS |
| Random read (4KB) | 101376 IOPS |
| Write speed | 480 MB/s |
| Read speed | 520 MB/s |
| Data transfer rate | 6 Gbit/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| Memory type | 3D NAND |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | M.2 |
| SSD capacity | 512 GB |
| Power | |
|---|---|
| Power consumption (idle) | 0.6 W |
| Power consumption (write) | 1.39 W |
| Power consumption (read) | 1.43 W |
| Weight & dimensions | |
|---|---|
| Weight | 9 g |
| Height | 2.3 mm |
| Depth | 22 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
| Package weight | 43 g |
| Package height | 148 mm |
| Package depth | 25 mm |
| Package width | 117 mm |
| Quick start guide | Yes |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 120 g |
| Master (outer) case height | 188 mm |
| Master (outer) case length | 70 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case width | 128 mm |
| Products per pallet | 990 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 495 pc(s) |
