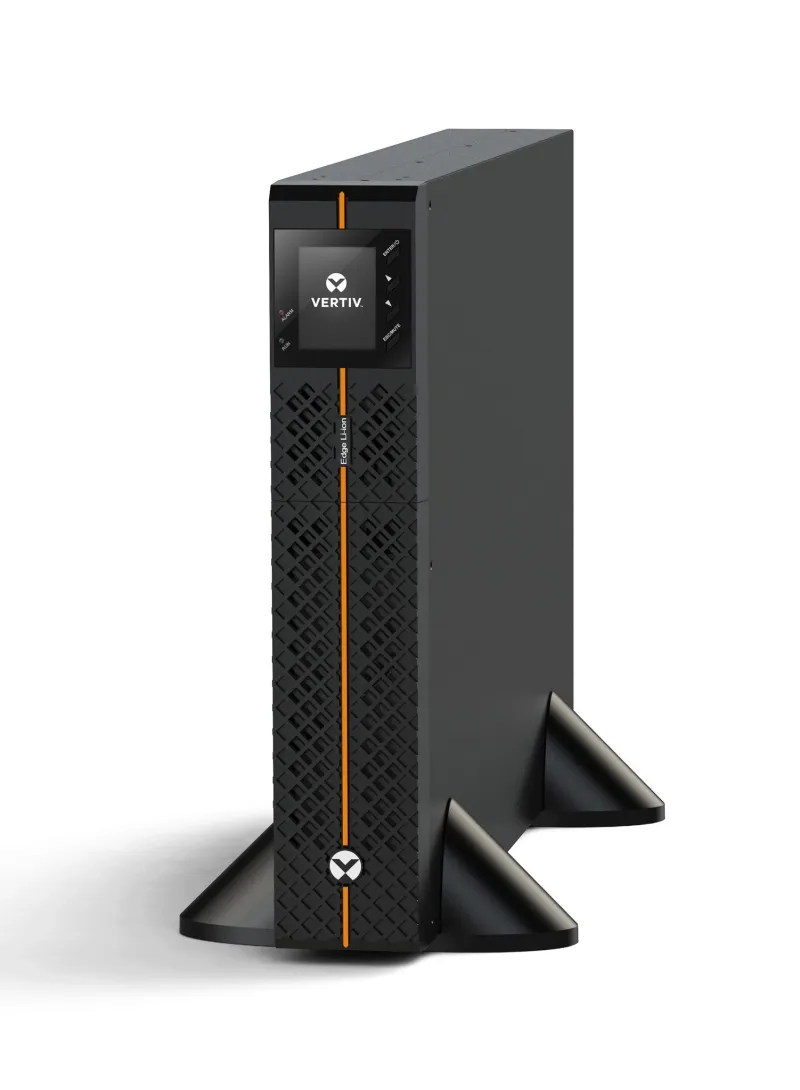

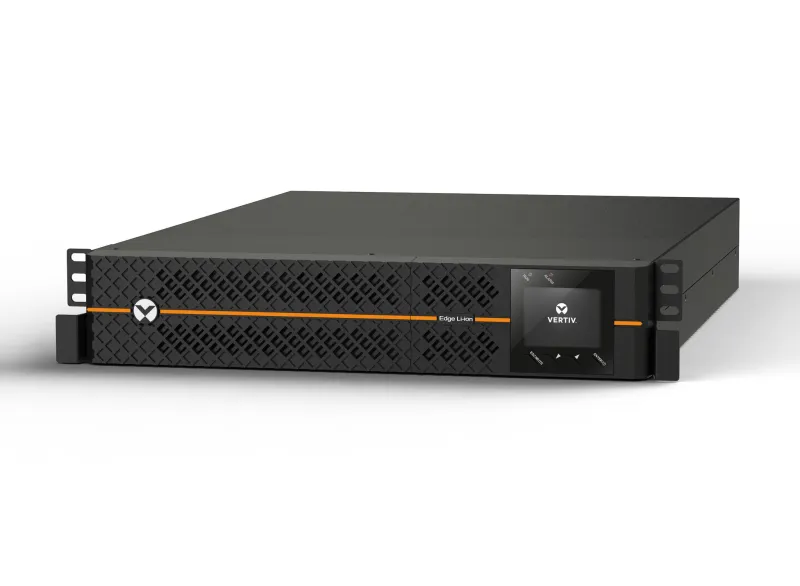

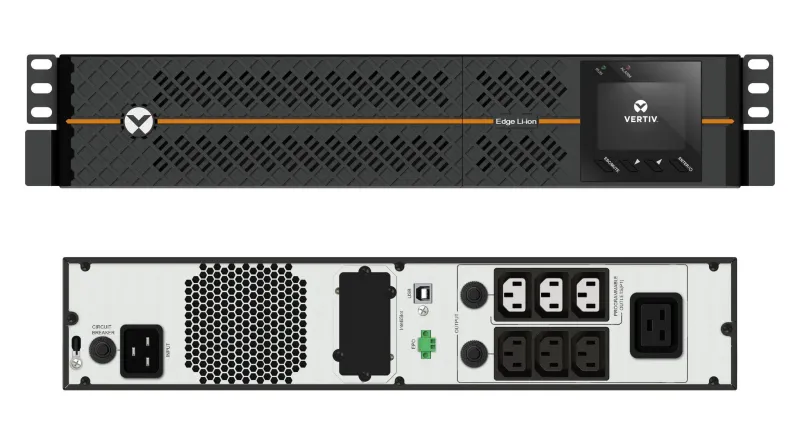

Vertiv EDGELI-3000IRT2U uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 6 AC outlet(s)
- The lowest total cost of ownership over the lifetime of the UPS with fewer battery replacements
- Hot-swappable user replaceable batteries increase the useable life of the UPS
- Longer battery life (up to 3 times longer than VRLA) and fewer battery replacements
- With high efficiency and flexible rack/tower form factor
The Vertiv Edge Lithium Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in server rooms, network closets and other edge and distributed IT applications. This 3 kVA UPS offers lower total cost of ownership, which can be up to 50% savings over lifetime. Lithium-ion batteries have greater power density, last about 2-3 times as long, recharge quicker and endure up to x10 more discharge cycles than traditional valve-regulated-lead-acid (VLRA) batteries. It includes automatic voltage regulation (AVR) technology to further extend battery life and provides plenty of runtime on battery during an outage for an orderly shutdown. This set-it-and-forget-it single phase UPS system comes with a five-year standard warranty for UPS and batteries, and together with the optional webcard for remote management, becomes ideal for remote or unmanned locations. This rack/tower UPS comes with a rotating LCD display to allow both rack and tower configurations.
| Features |
| Audible alarm(s) |
Yes |
| Noise level |
55 dB |
| EMI/RFI noise filtering |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Output power factor |
0.9 |
| Input power factor |
0.9 |
| Power factor |
0.9 |
| Efficiency |
98.5% |
| Response time |
6 ms |
| Surge energy rating |
624 J |
| Maximum current |
10 A |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output operation voltage (max) |
240 V |
| Input frequency |
45/65 Hz |
| Input operation voltage (max) |
278 V |
| Input operation voltage (min) |
166 V |
| Waveform |
Sine |
| Output power |
2700 W |
| Output power capacity |
3 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Hot-swap battery |
Yes |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
22.6 min |
| Typical backup time at full load |
10.5 min |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Design |
| LED indicators |
Diagnostic |
| Display type |
LCD |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Operating altitude |
0 – 3000 m |
| Operating relative humidity (H-H) |
8 – 90% |
| Storage temperature (T-T) |
-10 – 45 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Packaging content |
| Cables included |
Output power cable, USB cable, Input power cable |
| Certificates |
| Certification |
CE, EAC, RCM, CB report, ISTA 2A, UN38.3 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
24.3 kg |
| Height |
86 mm |
| Depth |
630 mm |
| Width |
438 mm |
| Packaging data |
| Package weight |
32.1 kg |
| Package height |
240 mm |
| Package depth |
800 mm |
| Package width |
600 mm |
| Logistics data |
| Country of origin |
China |
| Harmonized System (HS) code |
85078000 |
