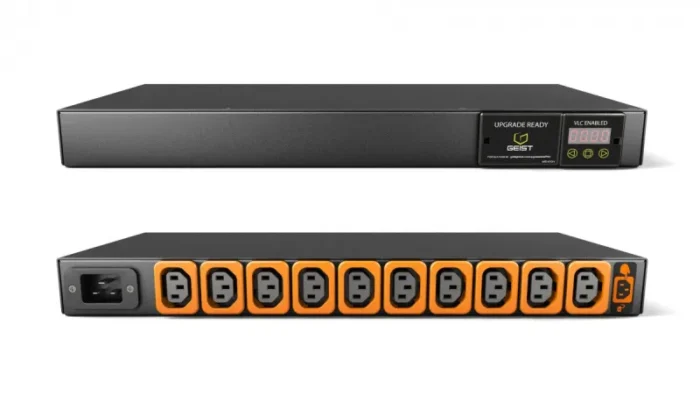

Vertiv UI10016L power distribution unit (PDU) 10 AC outlet(s) 1U Black
- With the Geist Upgradeable hot-swap technology, users may easily transform basic rPDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
Basic Upgradeable rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet.
| Design |
| Product colour |
Black |
| Mounting |
Horizontal |
| Rack capacity |
1U |
| PDU types |
Basic |
| Ports & interfaces |
| AC outlets quantity |
10 AC outlet(s) |
| Power |
| Load capacity |
3700 VA |
| Maximum current |
16 A |
| AC input frequency |
50 Hz |
| Nominal input voltage |
230 V |
| Certificates |
| Certification |
– CE Marked- RoHS Compliant & China RoHS- Complies with IEC 60950-1 (CB Certificate Available) |
| Compliance certificates |
RoHS |
| Operational conditions |
| Operating altitude |
0 – 3050 m |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating temperature (T-T) |
0 – 60 °C |
| Weight & dimensions |
| Weight |
4.54 kg |
| Height |
216 mm |
| Depth |
432 mm |
| Width |
44 mm |
